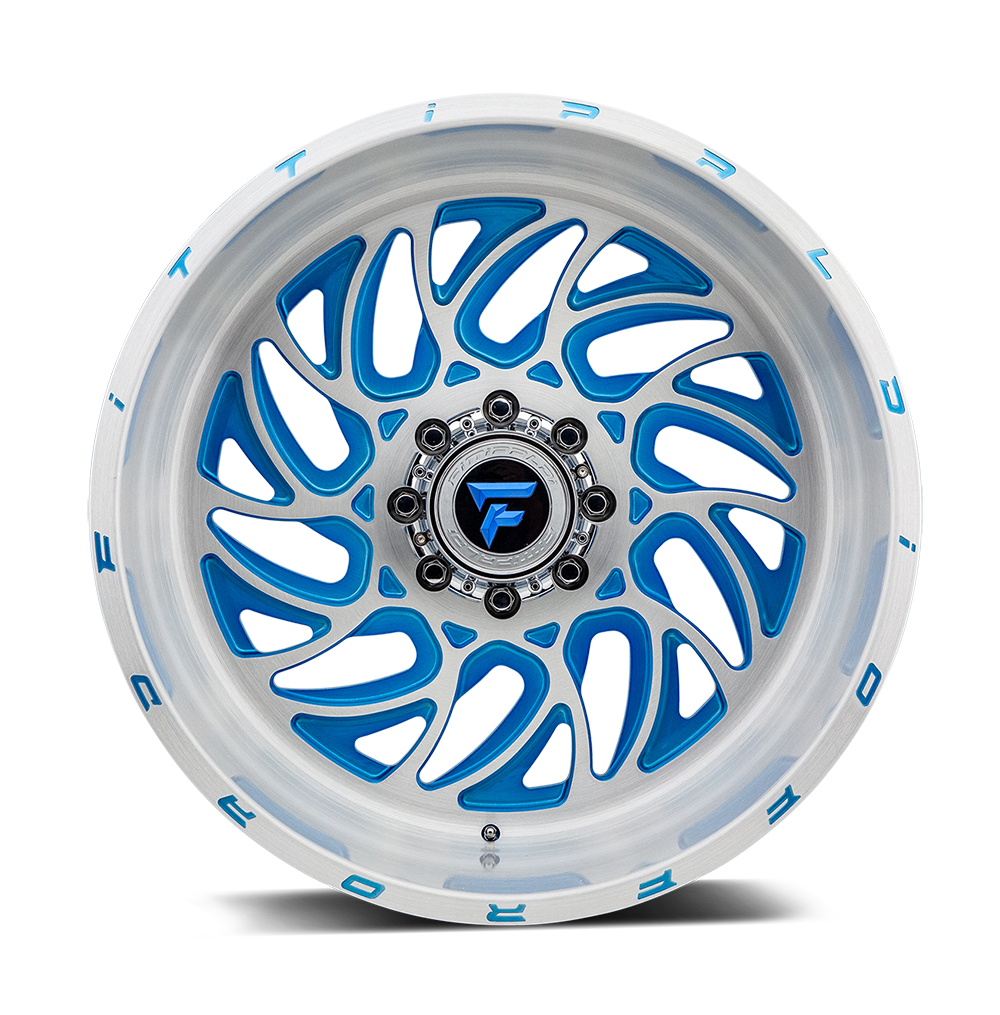

Alpha Series

FTF 09

FORGED

U.S. PATENT NO. D863,186

DIAMETERS: 22"/ 24"
WIDTHS: 12"/14"
BOLT PATTERNS: 5x5 / 6x135 / 6x5.50 / 8x6.50 / 8x170

STANDARD FINISHES:

BLACK MILLED (BM)
BRUSHED BLUE (UBL)
POLISHED (P)

INQUIRE / FIND A DEALER

AVAILABLE SIZES AND LIVE INVENTORY

[] CLICK TO EXPAND

Alpha Series

FTF 09

PartNumber	Size	Bolt Circle	Offset (mm)	Back Spacing	Load Rating	Hub Bore (mm)	Inventory
FTF09-22125127N51BM	22X12	5X5.00	-51	4.49	2500	71.50mm	5
FTF09-22126135N51BM	22X12	6X135	-51	4.49	2500	87.10mm	4
FTF09-22126139N51BM	22X12	6X5.50	-51	4.49	2500	78.10mm	0
FTF09-22128165N51BM	22X12	8X6.50	-51	4.49	3500	125.20mm	1
FTF09-22128170N51BM	22X12	8X170	-51	4.49	3500	125.20mm	8
FTF09-22125127N51PL	22X12	5X5.00	-51	4.49	2500	71.50mm	5
FTF09-22126135N51PL	22X12	6X135	-51	4.49	2500	87.10mm	3
FTF09-22126139N51PL	22X12	6X5.50	-51	4.49	2500	78.10mm	0
FTF09-22128165N51PL	22X12	8X6.50	-51	4.49	3500	125.20mm	0
FTF09-22128170N51PL	22X12	8X170	-51	4.49	3500	125.20mm	0
FTF09-22125127N51UBL	22X12	5X5.00	-51	4.49	2500	71.50mm	0
FTF09-22126135N51UBL	22X12	6X135	-51	4.49	2500	87.10mm	0
FTF09-22126139N51UBL	22X12	6X5.50	-51	4.49	2500	78.10mm	0
FTF09-22128165N51UBL	22X12	8X6.50	-51	4.49	3500	125.20mm	0
FTF09-22128170N51UBL	22X12	8X170	-51	4.49	3500	125.20mm	0
FTF09-22146135N76BM	22X14	6X135	-76	4.51	2500	87.10mm	4
FTF09-22146139N76BM	22X14	6X5.50	-76	4.51	2500	78.10mm	0
FTF09-22148165N76BM	22X14	8X6.50	-76	4.51	3500	125.20mm	0
FTF09-22148170N76BM	22X14	8X170	-76	4.51	3500	125.20mm	0
FTF09-22146135N76PL	22X14	6X135	-76	4.51	2500	87.10mm	4
FTF09-22146139N76PL	22X14	6X5.50	-76	4.51	2500	78.10mm	0
FTF09-22148165N76PL	22X14	8X6.50	-76	4.51	3500	125.20mm	0
FTF09-22148170N76PL	22X14	8X170	-76	4.51	3500	125.20mm	0
FTF09-22146135N76UBL	22X14	6X135	-76	4.51	2500	87.10mm	4
FTF09-22146139N76UBL	22X14	6X5.50	-76	4.51	2500	78.10mm	1
FTF09-22148165N76UBL	22X14	8X6.50	-76	4.51	3500	125.20mm	2
FTF09-22148170N76UBL	22X14	8X170	-76	4.51	3500	125.20mm	4
FTF09-24126135N51BM	24X12	6X135	-51	4.49	2500	87.10mm	0
FTF09-24126139N51BM	24X12	6X5.50	-51	4.49	2500	78.10mm	1
FTF09-24128165N51BM	24X12	8X6.50	-51	4.49	3500	125.20mm	3
FTF09-24128170N51BM	24X12	8X170	-51	4.49	3500	125.20mm	0
FTF09-24126135N51PL	24X12	6X135	-51	4.49	2500	87.10mm	0
FTF09-24126139N51PL	24X12	6X5.50	-51	4.49	2500	78.10mm	0
FTF09-24128165N51PL	24X12	8X6.50	-51	4.49	3500	125.20mm	0
FTF09-24128170N51PL	24X12	8X170	-51	4.49	3500	125.20mm	0
FTF09-24126135N51UBL	24X12	6X135	-51	4.49	2500	87.10mm	2
FTF09-24126139N51UBL	24X12	6X5.50	-51	4.49	2500	78.10mm	4
FTF09-24128165N51UBL	24X12	8X6.50	-51	4.49	3500	125.20mm	3
FTF09-24128170N51UBL	24X12	8X170	-51	4.49	3500	125.20mm	2
FTF09-24146139N76BM	24X14	6X5.50	-76	4.51	2500	78.10mm	3
FTF09-24148165N76BM	24X14	8X6.50	-76	4.51	3700	125.20mm	4
FTF09-24148170N76BM	24X14	8X170	-76	4.51	3500	125.20mm	0
FTF09-24146139N76PL	24X14	6X5.50	-76	4.51	2500	78.10mm	1
FTF09-24148165N76PL	24X14	8X6.50	-76	4.51	3500	125.20mm	0
FTF09-24148170N76PL	24X14	8X170	-76	4.51	3500	125.20mm	0
FTF09-24146139N76UBL	24X14	6X5.50	-76	4.51	2500	78.10mm	1
FTF09-24148165N76UBL	24X14	8X6.50	-76	4.51	3500	125.20mm	2
FTF09-24148170N76UBL	24X14	8X170	-76	4.51	3500	125.20mm	3
