Truck Forged

FTF500

[LEFT DIRECTIONAL] POLISHED (P)

U.S. PATENT PENDING

Diameters:

24"/ 26"/ 30"

Starting FROM : $1,175.00

PER WHEEL
color: [LEFT DIRECTIONAL] POLISHED (P)

OVERVIEW

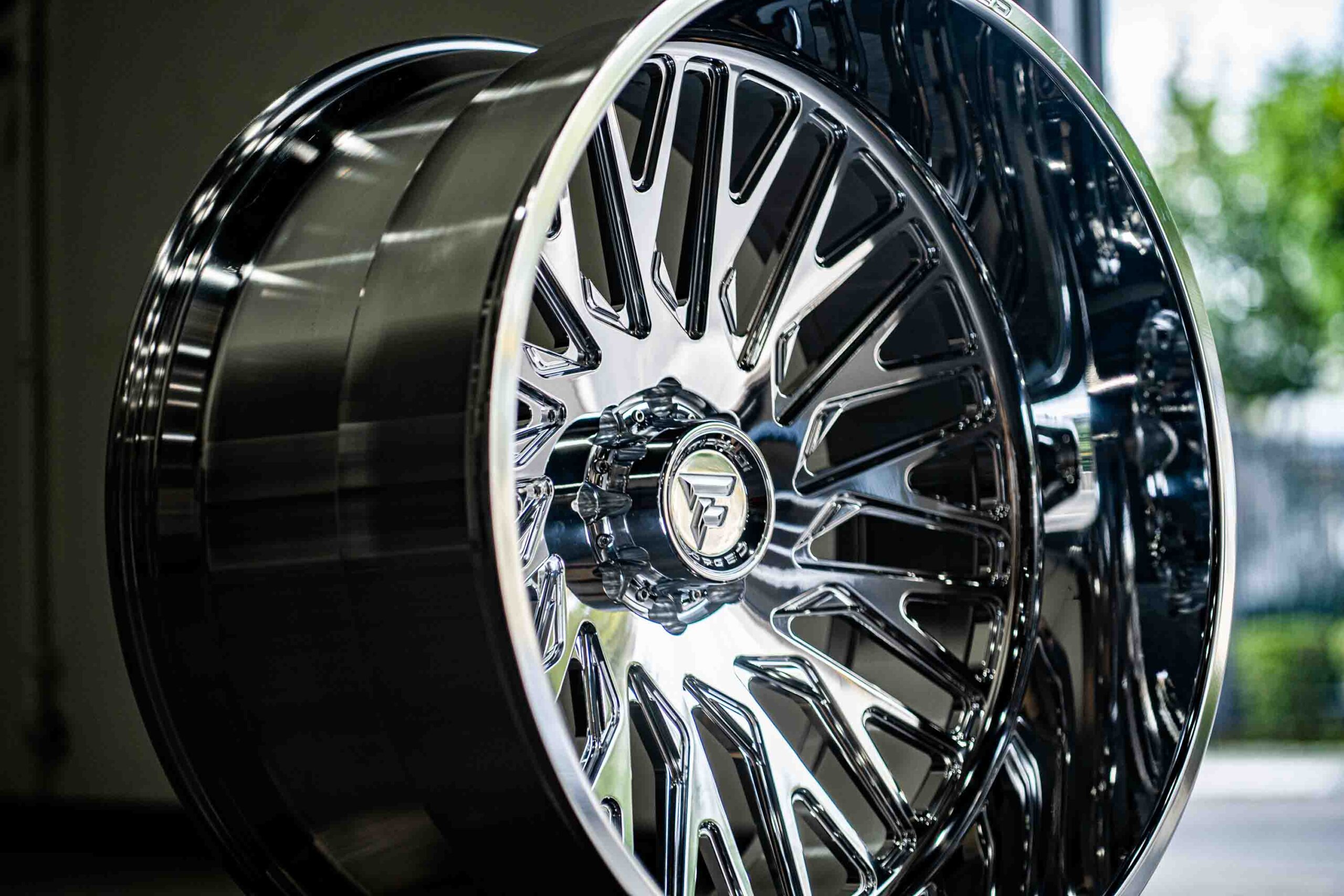

The FTF500 features a true directional super fine mesh design with a high spoke count on a concave spoke profile which creates an absolutely mesmerizing look, especially as it shimmers while you pull up to the show. Each Fittipaldi Off Road Forged wheel begins with a solid forged monoblock of the finest Aerospace-grade 6061 aluminum. Every monoblock is shaped by enormous pressure for the lightest and strongest forging before it is precision heat treated to T6 spec, further increasing stiffness and strength. Only then, can we begin the precision CNC-milling process to meet Fittipaldi Off Road’s highest standards of quality and design.


KEY FEATURES

• One-piece forged monoblock construction
• Super strong 6061-T6 aerospace-grade aluminum ​alloy
• T6 heat treated for maximum strength​
• Super fine directional mesh design with intricate milled accent details
• True directional left and right wheels
• Deep lip with concave face profile

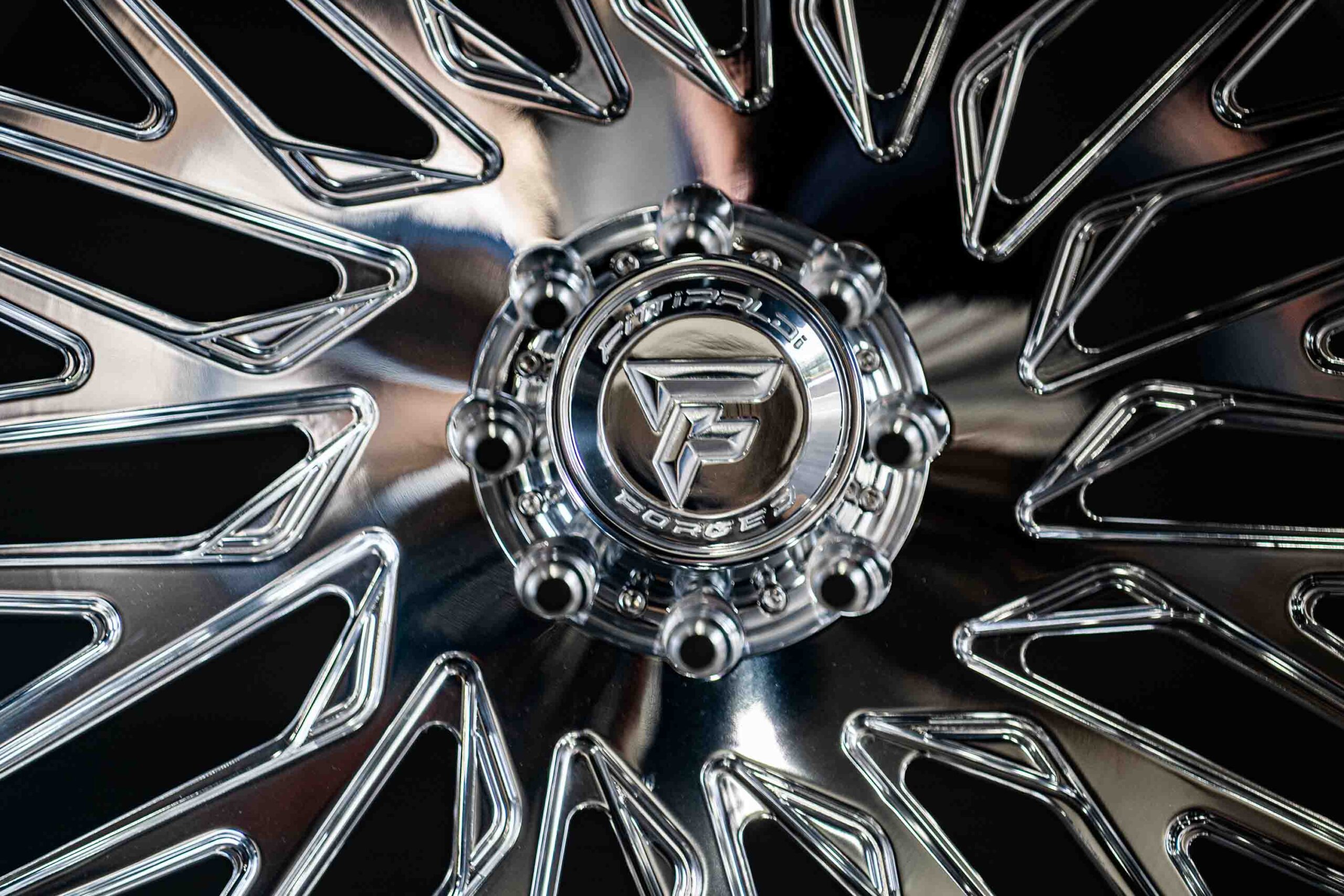

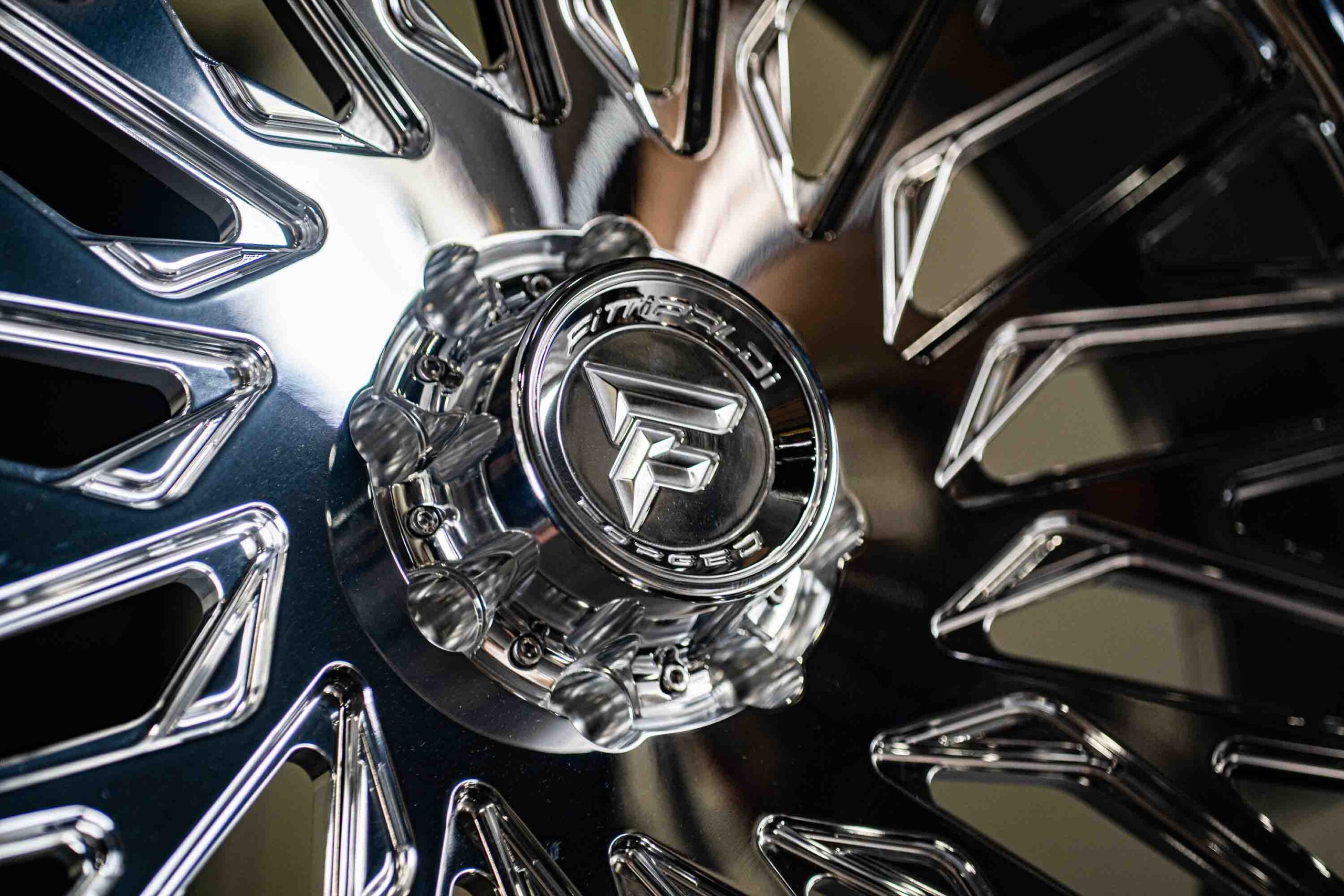

• Premium polished bolt-on forged aluminum centercap proudly showcasing Fittipaldi Off Road logo​ included with every wheel
• Precision details including “Fittipaldi Forged” proudly milled on outer lip
• Available in premium polished
• TPMS compatible
• Industry-leading 2500-3500 lb. minimum load ratings​
• Lifetime structural warranty

BOLT PATTERN

8 LUG
6 LUG
5 LUG

Specifications

PART NUMBERWHEEL SIZEBOLT PATTERNOFFSET (MM)BACK SPACINGHUB BORE (MM)LOAD RATINGCAPMAP
FTF500-24126139N44P-L24X126X5.50-444.77106.22500CAP-FTF-6$1,100.00
FTF500-24126139N44P-R24X126X5.50-444.77106.22500CAP-FTF-6$1,100.00
FTF500-24145127N76P-L24X145X5.00-764.5171.52500CAP-FTF-5S$1,175.00
FTF500-24145127N76P-R24X145X5.00-764.5171.52500CAP-FTF-5S$1,175.00
FTF500-24146139N76P-L24X146X5.50-764.51106.22500CAP-FTF-6$1,175.00
FTF500-24146139N76P-R24X146X5.50-764.51106.22500CAP-FTF-6$1,175.00
FTF500-24148165N76P-L24X148X6.50-764.51125.23500CAP-FTF-8$1,175.00
FTF500-24148165N76P-R24X148X6.50-764.51125.23500CAP-FTF-8$1,175.00
FTF500-24148170N76P-L24X148X170-764.51125.23500CAP-FTF-8$1,175.00
FTF500-24148170N76P-R24X148X170-764.51125.23500CAP-FTF-8$1,175.00
FTF500-26146135N76P-L26X146X135-764.5187.12500CAP-FTF-6$1,600.00
FTF500-26146135N76P-R26X146X135-764.5187.12500CAP-FTF-6$1,600.00
FTF500-26148170N76P-L26X148X170-764.51125.23500CAP-FTF-8$1,600.00
FTF500-26148170N76P-R26X148X170-764.51125.23500CAP-FTF-8$1,600.00
FTF500-26168165N101P-L26X168X6.50-1014.52125.23500CAP-FTF-8$1,675.00
FTF500-26168165N101P-R26X168X6.50-1014.52125.23500CAP-FTF-8$1,675.00
FTF500-26168170N101P-L26X168X170-1014.52125.23500CAP-FTF-8$1,675.00
FTF500-26168170N101P-R26X168X170-1014.52125.23500CAP-FTF-8$1,675.00
FTF500-30168165N101P-L30X168X6.50-1014.52125.23500CAP-FTF-8$2,800.00
FTF500-30168165N101P-R30X168X6.50-1014.52125.23500CAP-FTF-8$2,800.00
FTF500-30168170N101P-L30X168X170-1014.52125.23500CAP-FTF-8$2,800.00
FTF500-30168170N101P-R30X168X170-1014.52125.23500CAP-FTF-8$2,800.00
