24"/ 26"/ 28"/ 30"
STARTING FROM :$795.00

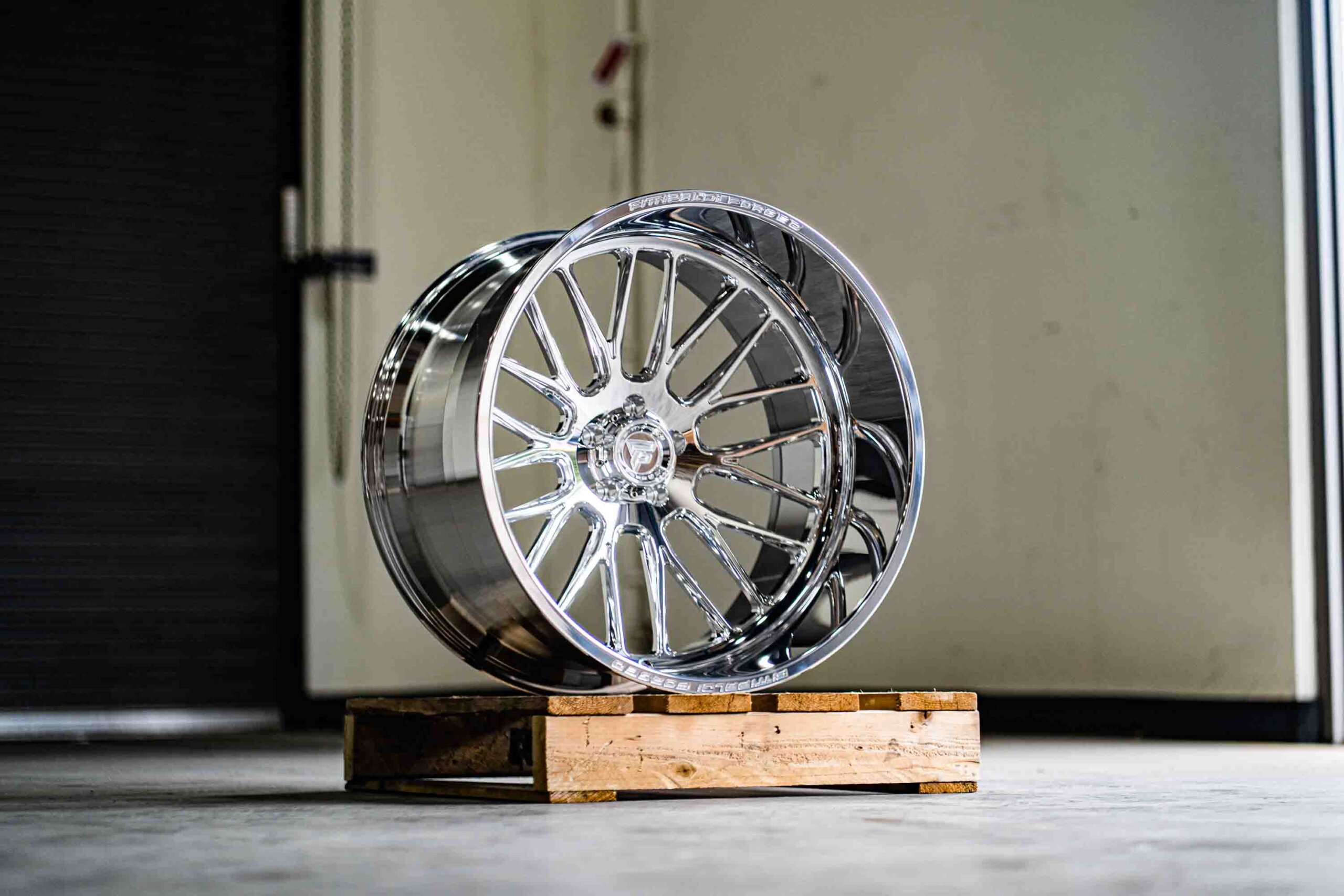

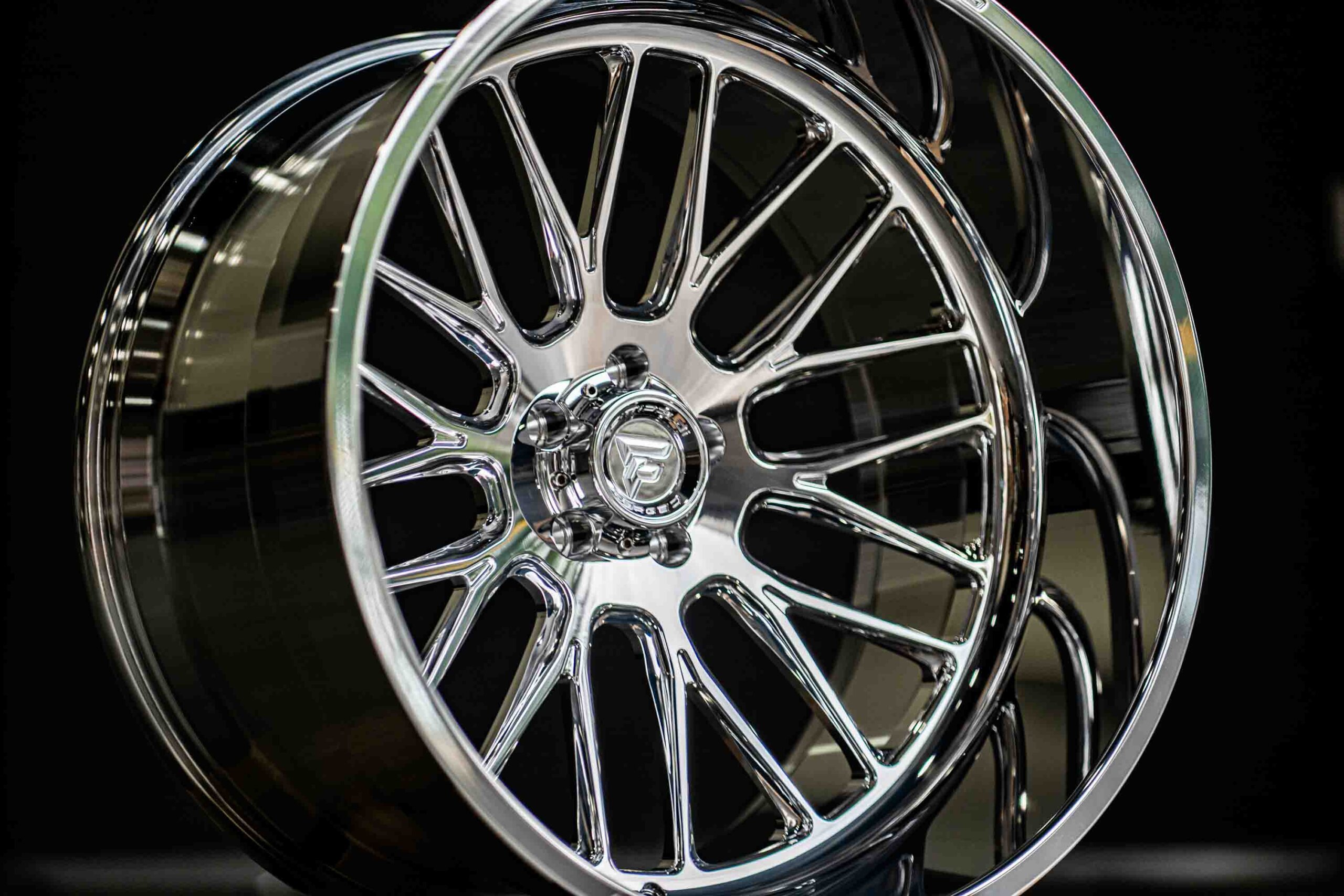

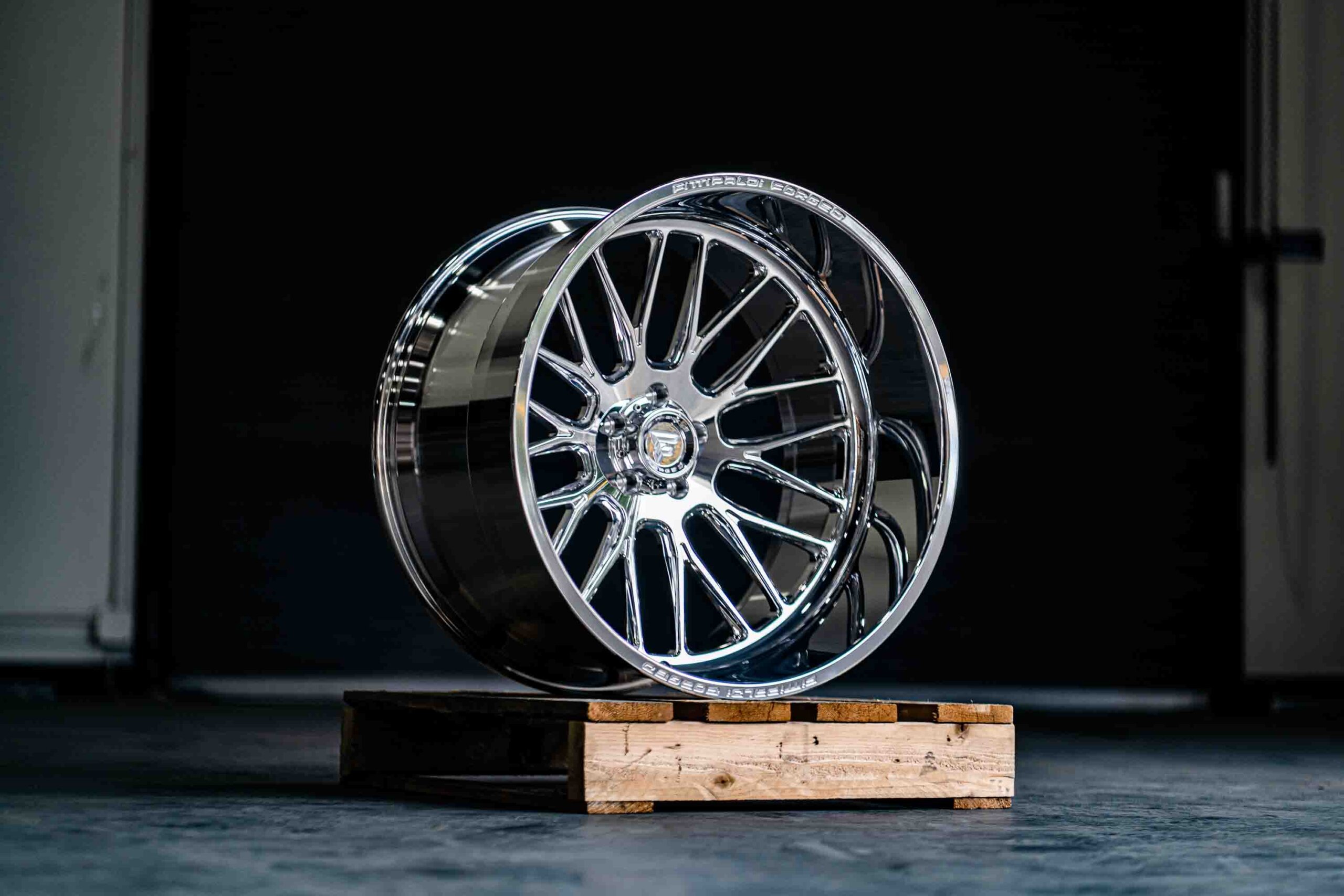

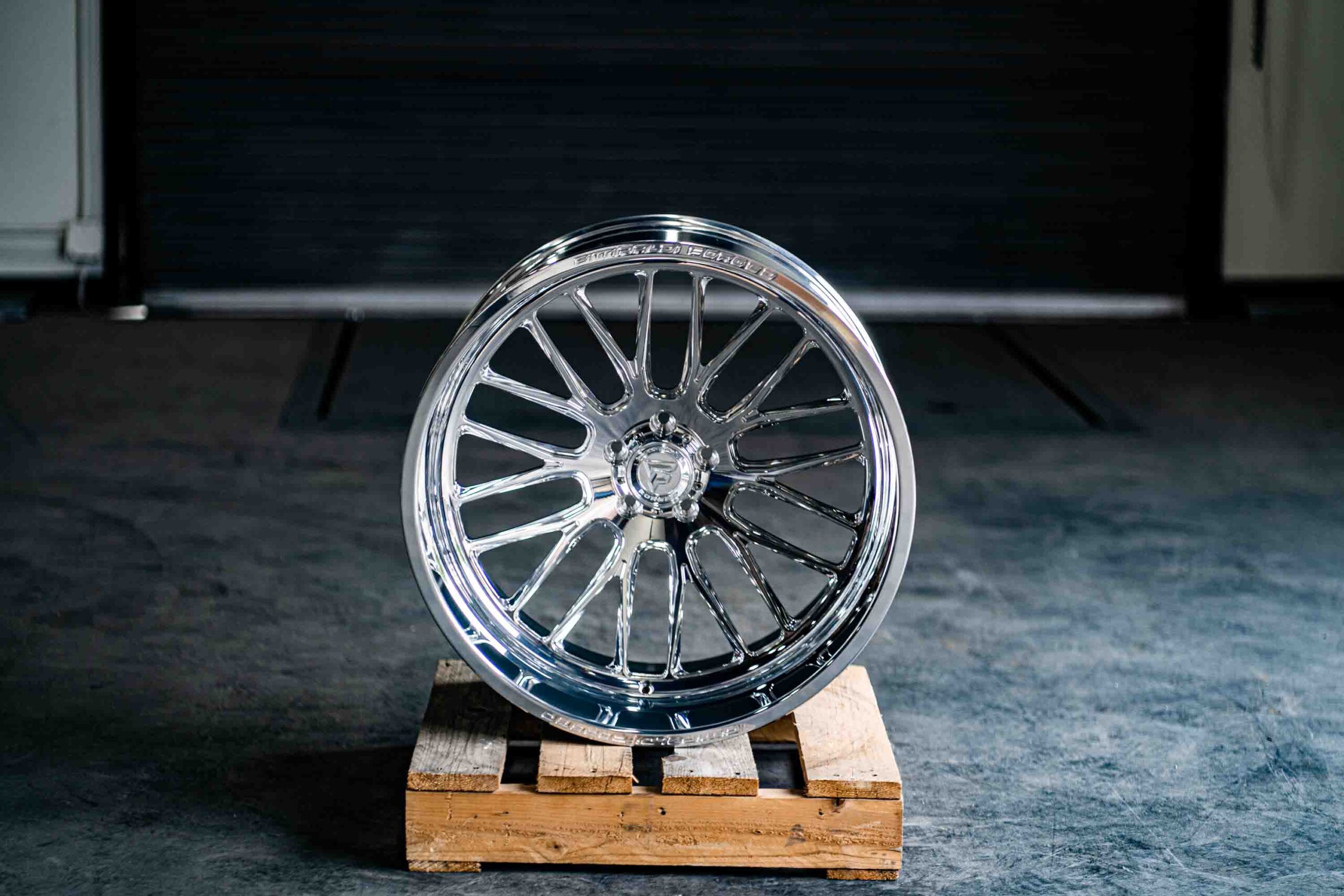

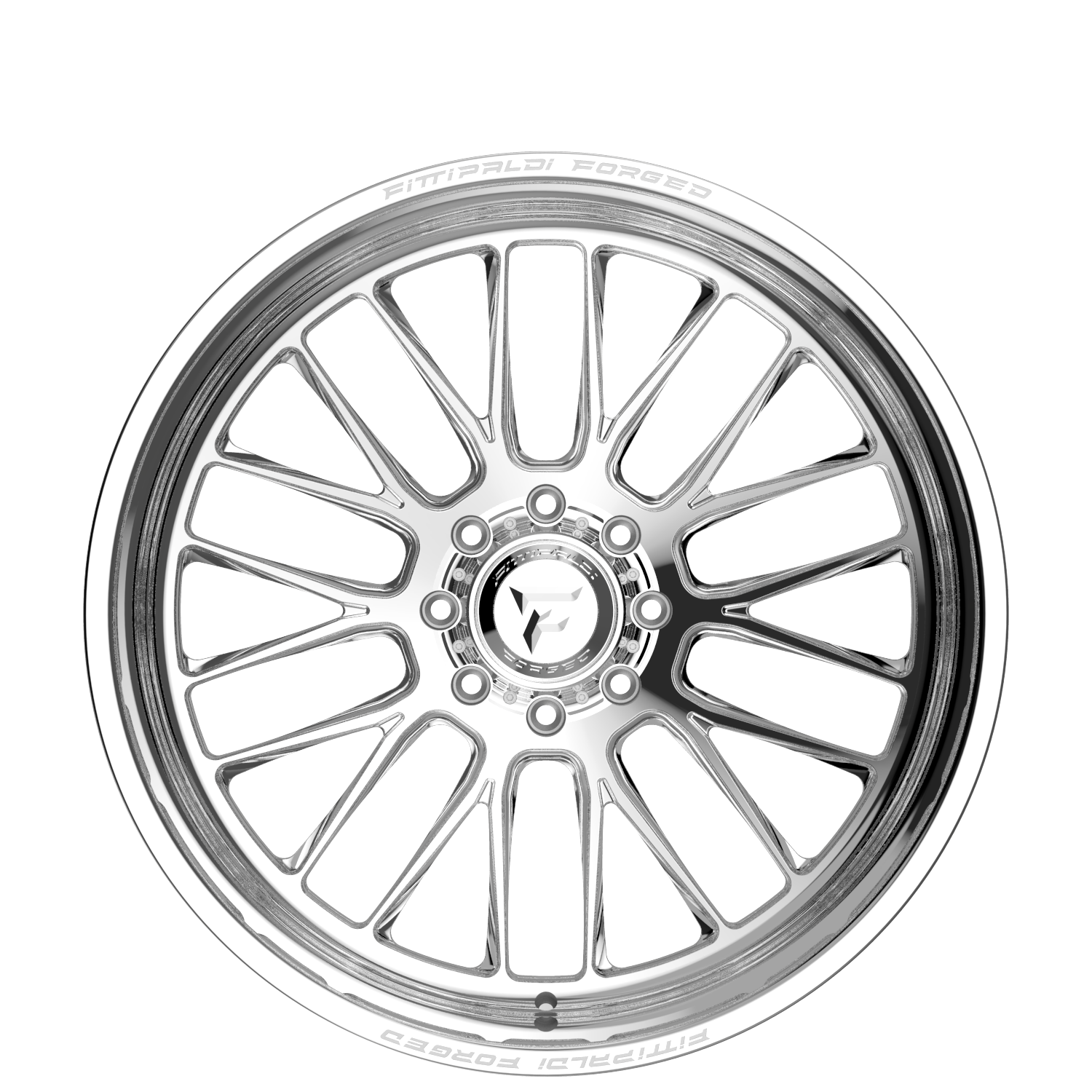

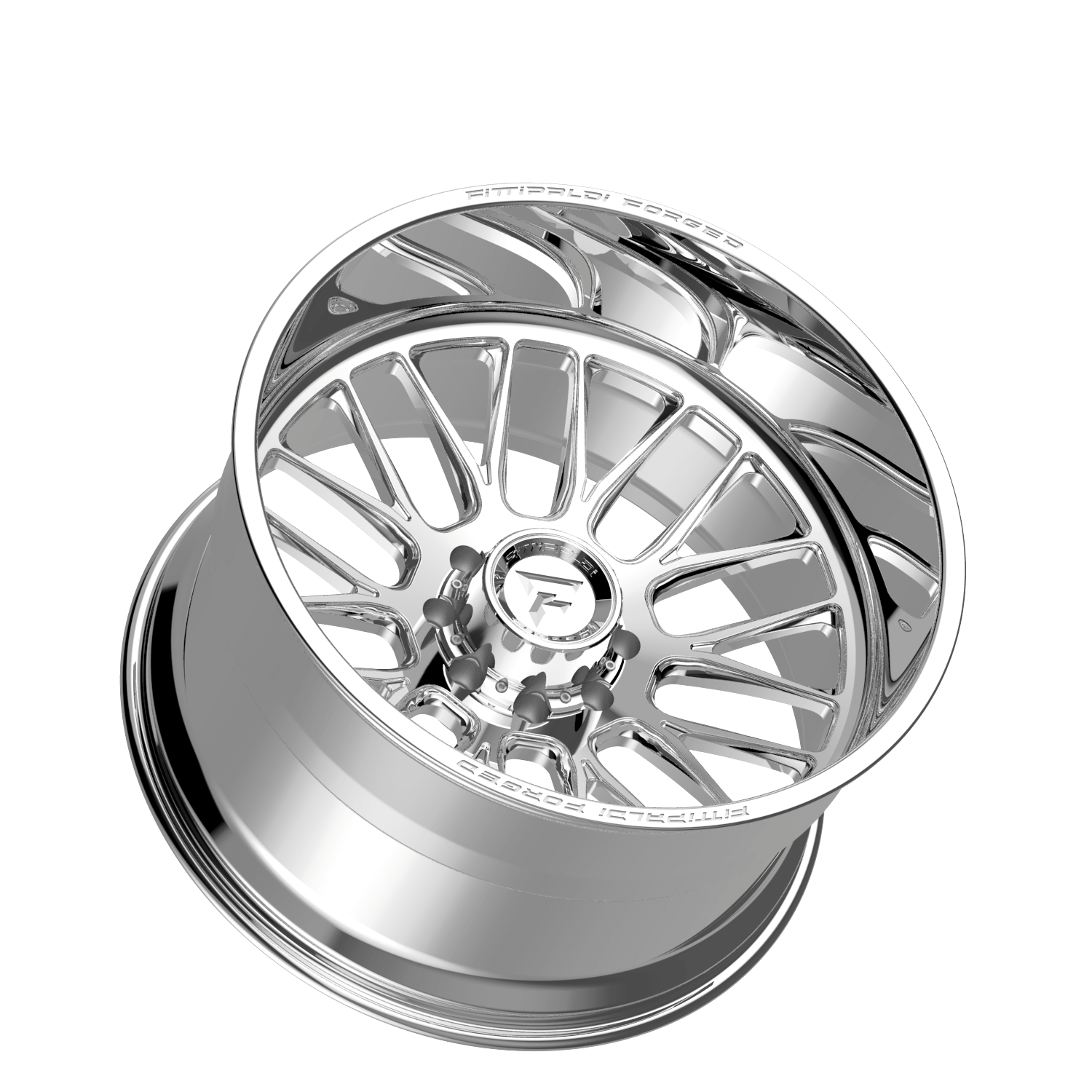

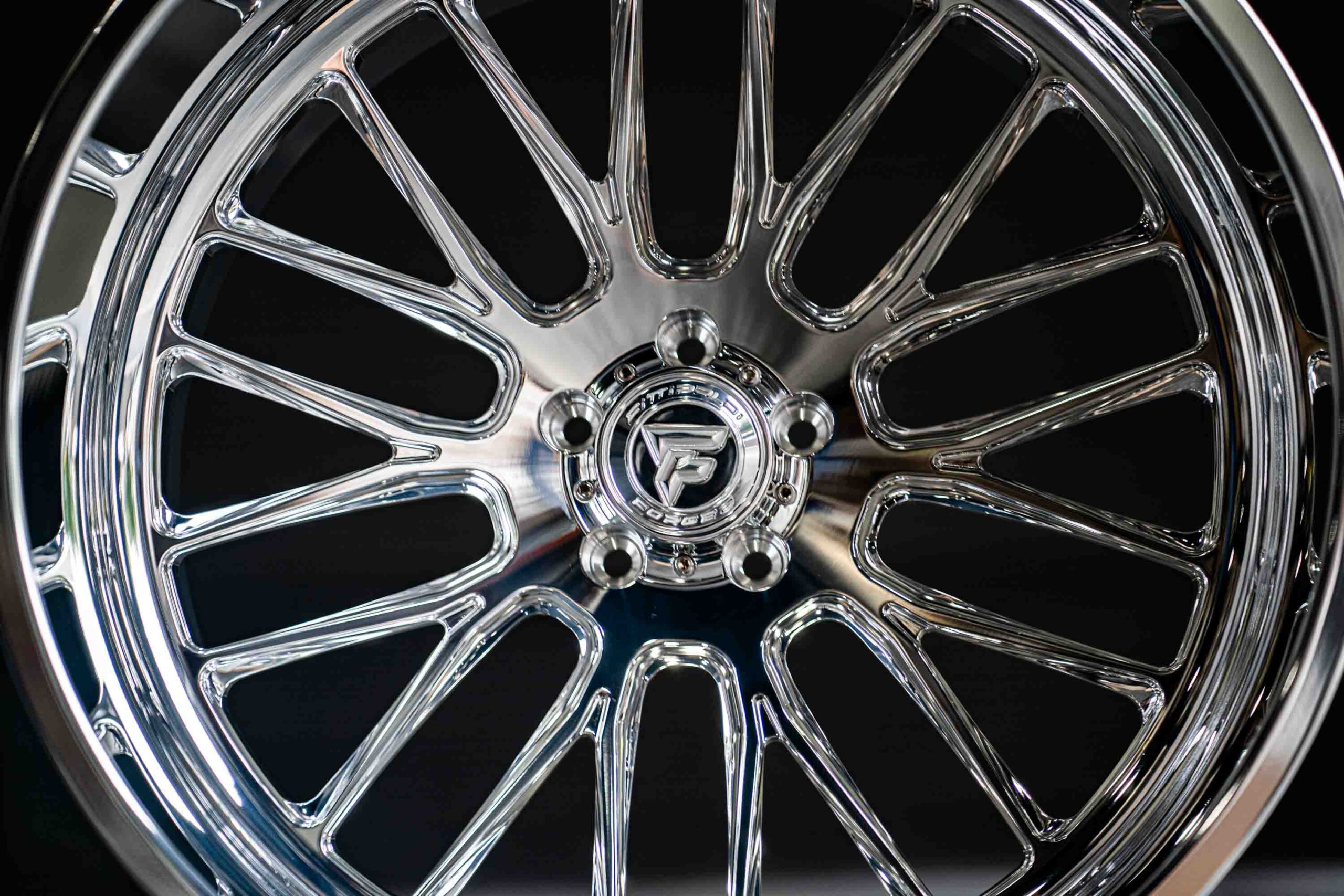

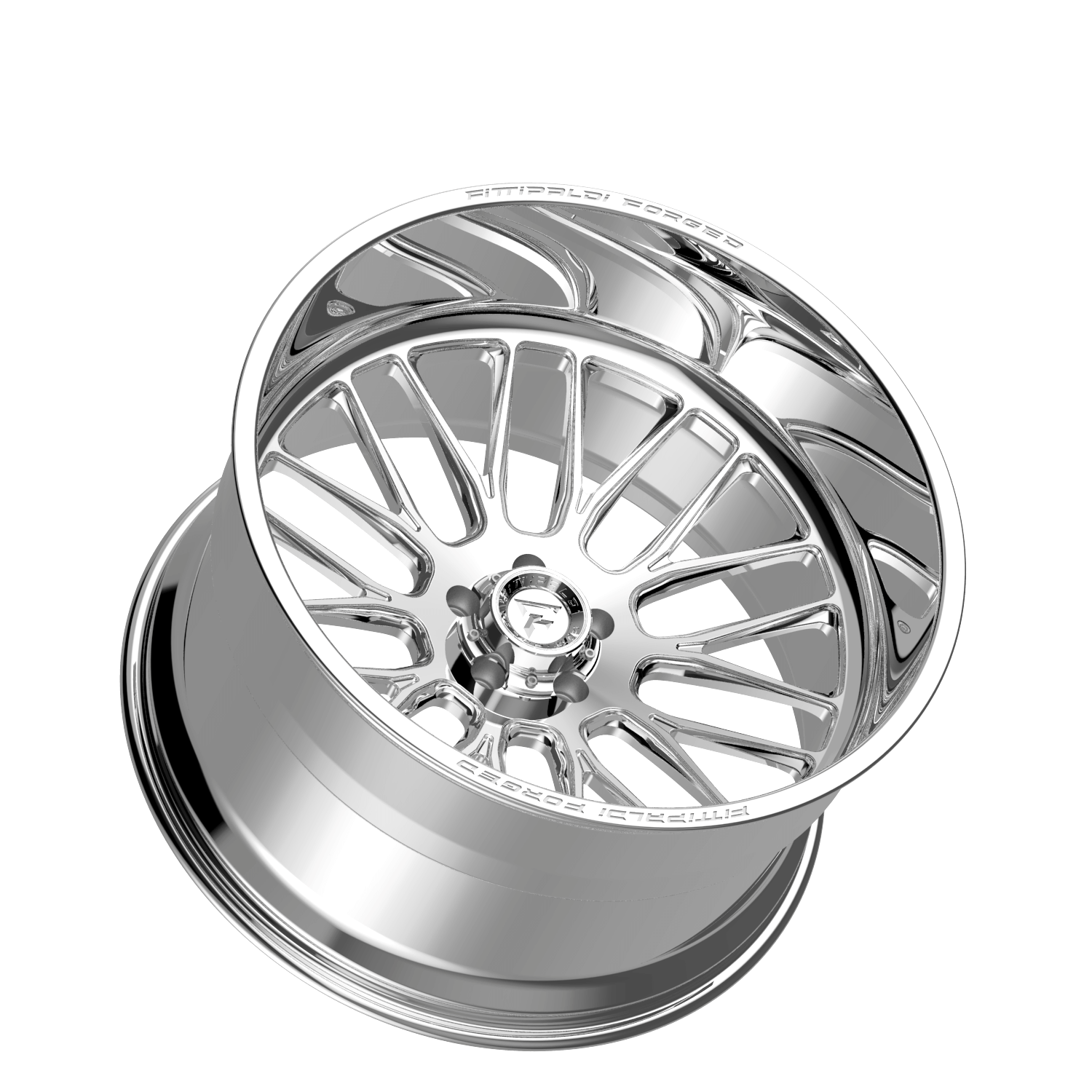

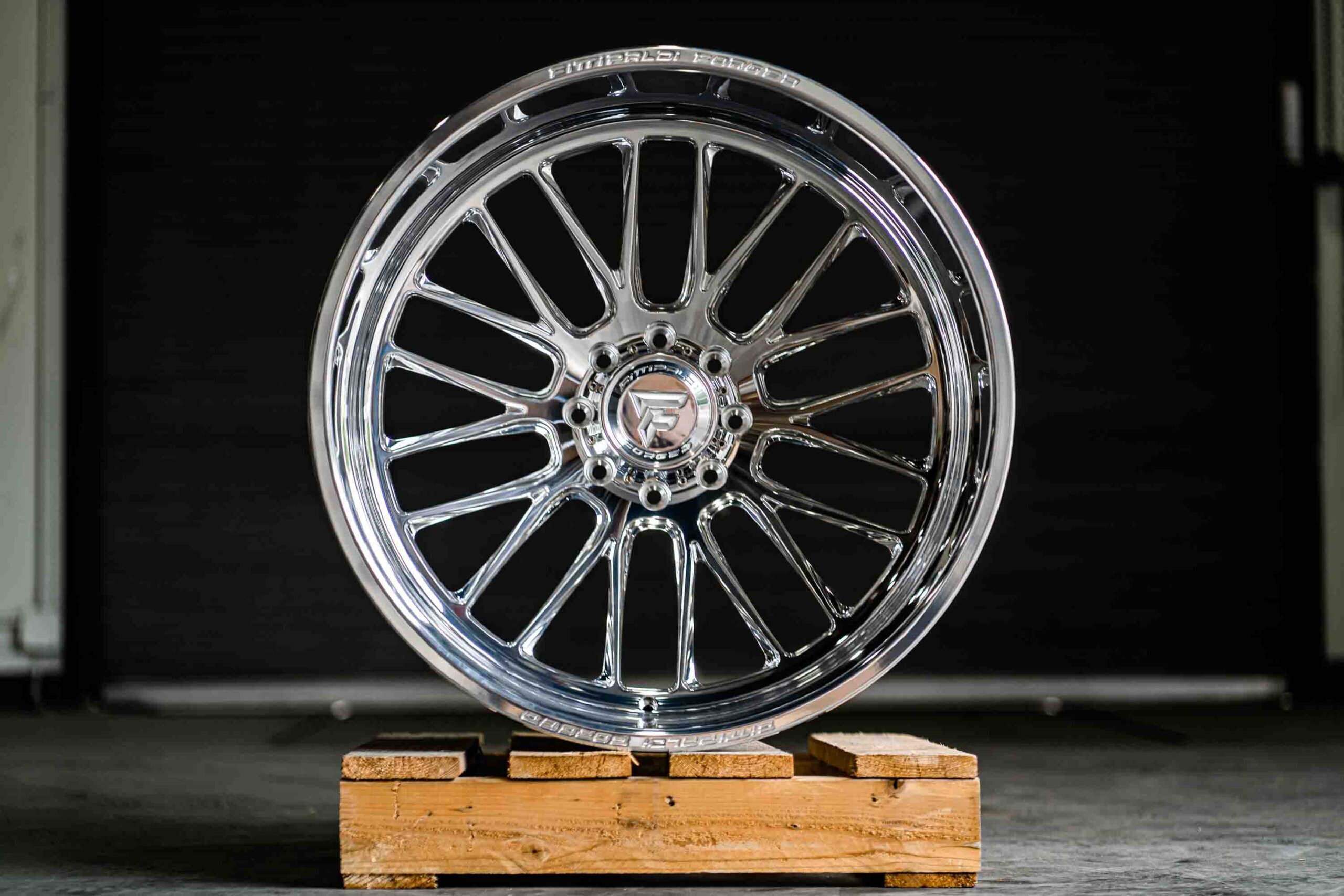

The FTF502 takes mesh spoke design to the next level with a subtle twist and sophisticated details that reveal themselves the closer you look. A true Fittipaldi original that will look amazing and perform for years to come. Each Fittipaldi Off Road Forged wheel begins with a solid forged monoblock of the finest Aerospace-grade 6061 aluminum. Every monoblock is shaped by enormous pressure for the lightest and strongest forging before it is precision heat treated to T6 spec, further increasing stiffness and strength. Only then, can we begin the precision CNC-milling process to meet Fittipaldi Off Road’s highest standards of quality and design.
• One-piece forged monoblock construction
• Super strong 6061-T6 aerospace-grade aluminum alloy
• T6 heat treated for maximum strength
• Subtle and sophisticated twisted mesh design with intricate milled accent details
• Deep lip with concave face profile
• Premium polished bolt-on forged aluminum centercap proudly showcasing Fittipaldi Off Road logo included with every wheel
• Precision details including “Fittipaldi Forged” proudly milled on outer lip
• Available in premium polished
• TPMS compatible
• Industry-leading 2500-3500 lb. minimum load ratings
• Lifetime structural warranty
• Requires 60° Conical Lug Nuts (Not Included)
| PART NUMBER | WHEEL SIZE | FINISH | BOLT PATTERN | BOLT PATTERN (METRIC) | OFFSET (MM) | BACK SPACING (IN) | HUB BORE (MM) | LOAD RATING (LBS) | STANDARD CAP | OPTIONAL FLOATING CAP | LIP DEPTH (IN) | WHEEL WEIGHT (LBS) | PRICE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FTF502-24146139N76P | 24X14 | Polished | 6X5.50 | 6x139.7 | -76 | 4.51 | 106.2 | 2500 | CAP-FTF-6 | CAP-FTF-6F | 6.02 | 44.75 | $1,175.00 |
| FTF502-24148165N76P | 24X14 | Polished | 8X6.50 | 8x165.1 | -76 | 4.51 | 125.2 | 3500 | CAP-FTF-8 | CAP-FTF-8F | 6.02 | 44.75 | $1,175.00 |
| FTF502-24148170N76P | 24X14 | Polished | 8X170 | 8X170 | -76 | 4.51 | 125.2 | 3500 | CAP-FTF-8 | CAP-FTF-8F | 6.02 | 44.75 | $1,175.00 |
| FTF502-24148180N76P | 24X14 | Polished | 8X180 | 8X180 | -76 | 4.51 | 124.3 | 3500 | CAP-FTF-8 | CAP-FTF-8F | 6.02 | 44.75 | $1,175.00 |
| FTF502-26168165N101P | 26X16 | Polished | 8X6.50 | 8x165.1 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | CAP-FTF-8F | 7.9 | 59.65 | $1,675.00 |
| FTF502-26168170N101P | 26X16 | Polished | 8X170 | 8X170 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | CAP-FTF-8F | 7.9 | 59.65 | $1,675.00 |
| FTF502-28168170N101P | 28X16 | Polished | 8X170 | 8X170 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | CAP-FTF-8F | 7.12 | 70.55 | $2,200.00 |
| FTF502-28168180N101P | 28X16 | Polished | 8X180 | 8X180 | -101 | 4.52 | 124.3 | 3500 | CAP-FTF-8 | CAP-FTF-8F | 7.12 | 70.55 | $2,200.00 |
| FTF502-30168170N101P | 30x16 | Polished | 8x170 | 8x170 | -101 | 4.52 | 125.2 | 3500 | CAP-FTF-8 | CAP-FTF-8F | 7 | 75.4 | $2,800.00 |
| FTF502-201063539N19B | 20X10 | Gloss Black | 6x135/6x5.50 | 6x135/6x139.7 | -19 | 4.75 | 106.2 | 2500 | CAP-F6H-BB25 | N/A | 3.54 | 53.13 | $795.00 |
| FTF502-20108165N19B | 20X10 | Gloss Black | 8x6.50 | 8X165.1 | -19 | 4.75 | 125.2 | 3700 | CAP-FORC-8-BB2 | N/A | 3.5 | 53.13 | $795.00 |
| FTF502-20108170N19B | 20X10 | Gloss Black | 8x170 | 8x170 | -19 | 4.75 | 125.2 | 3700 | CAP-FORC-8-BB25 | N/A | 3.5 | 53.13 | $795.00 |
| FTF502-20108180N19B | 20X10 | Gloss Black | 8x180 | 8x180 | -19 | 4.75 | 124.3 | 3700 | CAP-FORC-8-BB2 | N/A | 3.5 | 53.13 | $795.00 |
| FTF502-221063539N19B | 22X10 | Gloss Black | 6x135/6x5.50 | 6x135/6x139.7 | -19 | 4.75 | 106.2 | 2500 | CAP-F6H-BB25 | N/A | 2.33 | 58.64 | $885.00 |
| FTF502-22108165N19B | 22X10 | Gloss Black | 8x6.50 | 8X165.1 | -19 | 4.75 | 125.2 | 3700 | CAP-FORC-8-BB2 | N/A | 2.33 | 58.64 | $885.00 |
| FTF502-22108170N19B | 22X10 | Gloss Black | 8x170 | 8x170 | -19 | 4.75 | 125.2 | 3700 | CAP-FORC-8-BB25 | N/A | 2.33 | 58.64 | $885.00 |
| FTF502-22108180N19B | 22X10 | Gloss Black | 8x180 | 8x180 | -19 | 4.75 | 124.3 | 3700 | CAP-FORC-8-BB2 | N/A | 2.33 | 58.64 | $885.00 |
| FTF502-221263539N44B | 22X12 | Gloss Black | 6x135/6x5.50 | 6x135/6x139.7 | -44 | 4.77 | 106.2 | 2500 | CAP-F6H-BB25 | N/A | 4.33 | 62.61 | $923.00 |
| FTF502-22128165N44B | 22X12 | Gloss Black | 8x6.50 | 8X165.1 | -44 | 4.77 | 125.2 | 3700 | CAP-FORC-8-BB2 | N/A | 4.33 | 62.61 | $923.00 |
| FTF502-22128170N44B | 22X12 | Gloss Black | 8x170 | 8x170 | -44 | 4.77 | 125.2 | 3700 | CAP-FORC-8-BB25 | N/A | 4.33 | 62.61 | $923.00 |
| FTF502-22128180N44B | 22X12 | Gloss Black | 8x180 | 8x180 | -44 | 4.77 | 124.3 | 3700 | CAP-FORC-8-BB2 | N/A | 4.33 | 62.61 | $923.00 |
| FTF502-241063539N19B | 24X10 | Gloss Black | 6x135/6x5.50 | 6x135/6x139.7 | -19 | 4.75 | 106.2 | 2500 | CAP-F6H-BB25 | N/A | 2.22 | 62.61 | $973.00 |
| FTF502-24108165N19B | 24X10 | Gloss Black | 8x6.50 | 8X165.1 | -19 | 4.75 | 125.2 | 3700 | CAP-FORC-8-BB2 | N/A | 2.23 | 62.61 | $973.00 |
| FTF502-24108170N19B | 24X10 | Gloss Black | 8x170 | 8x170 | -19 | 4.75 | 125.2 | 3700 | CAP-FORC-8-BB25 | N/A | 2.23 | 62.61 | $973.00 |
| FTF502-24108180N19B | 24X10 | Gloss Black | 8x180 | 8x180 | -19 | 4.75 | 124.3 | 3700 | CAP-FORC-8-BB2 | N/A | 2.23 | 62.61 | $973.00 |
| FTF502-241263539N44B | 24X12 | Gloss Black | 6x135/6x5.50 | 6x135/6x139.7 | -44 | 4.77 | 106.2 | 2500 | CAP-F6H-BB25 | N/A | 4.23 | 65.26 | $1,023.00 |
| FTF502-24128165N44B | 24X12 | Gloss Black | 8x6.50 | 8X165.1 | -44 | 4.77 | 125.2 | 3700 | CAP-FORC-8-BB2 | N/A | 4.22 | 65.26 | $1,023.00 |
| FTF502-24128170N44B | 24X12 | Gloss Black | 8x170 | 8x170 | -44 | 4.77 | 125.2 | 3700 | CAP-FORC-8-BB25 | N/A | 4.22 | 65.26 | $1,023.00 |
| FTF502-24128180N44B | 24X12 | Gloss Black | 8x180 | 8x180 | -44 | 4.77 | 124.3 | 3700 | CAP-FORC-8-BB2 | N/A | 4.22 | 65.26 | $1,023.00 |
