Truck Forged

FTF504

POLISHED (P)

U.S. PATENT PENDING

Diameters:

24"/ 26"/ 30"

STARTING FROM :$1,175.00

PER WHEEL

color: POLISHED (P)

OVERVIEW

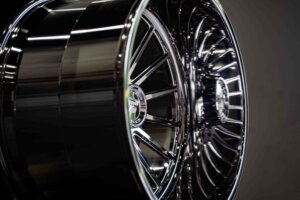

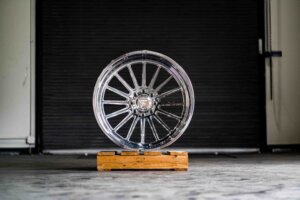

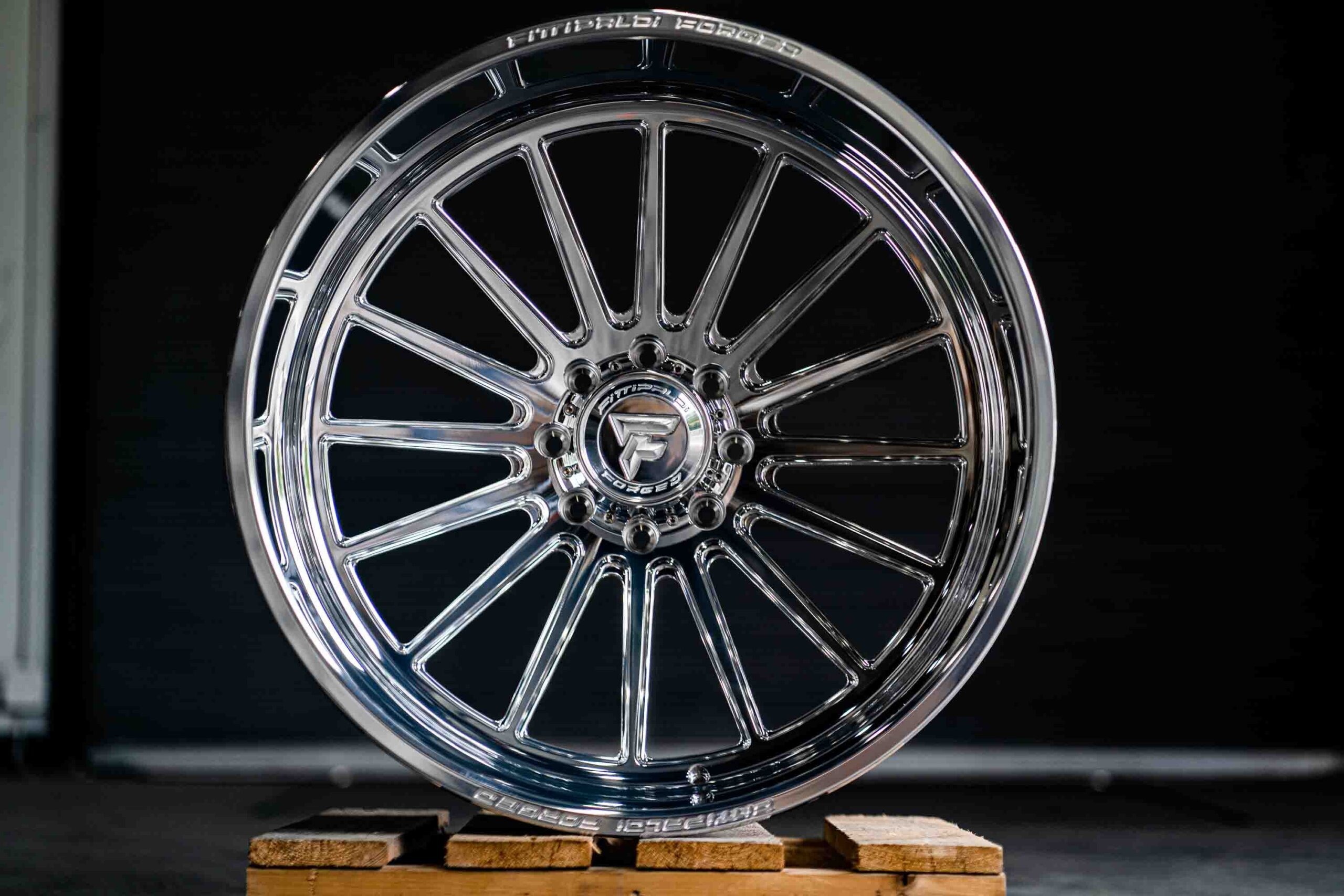

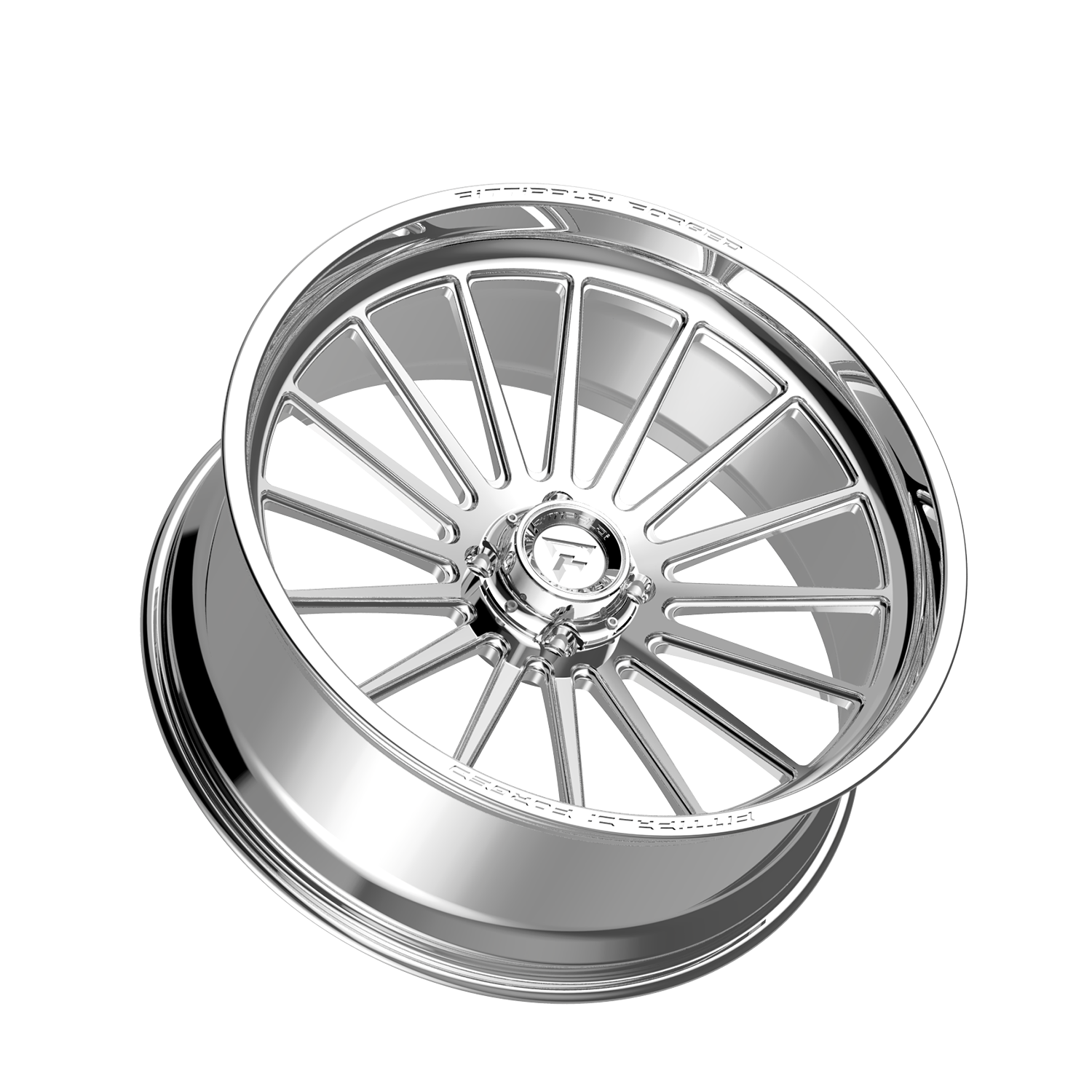

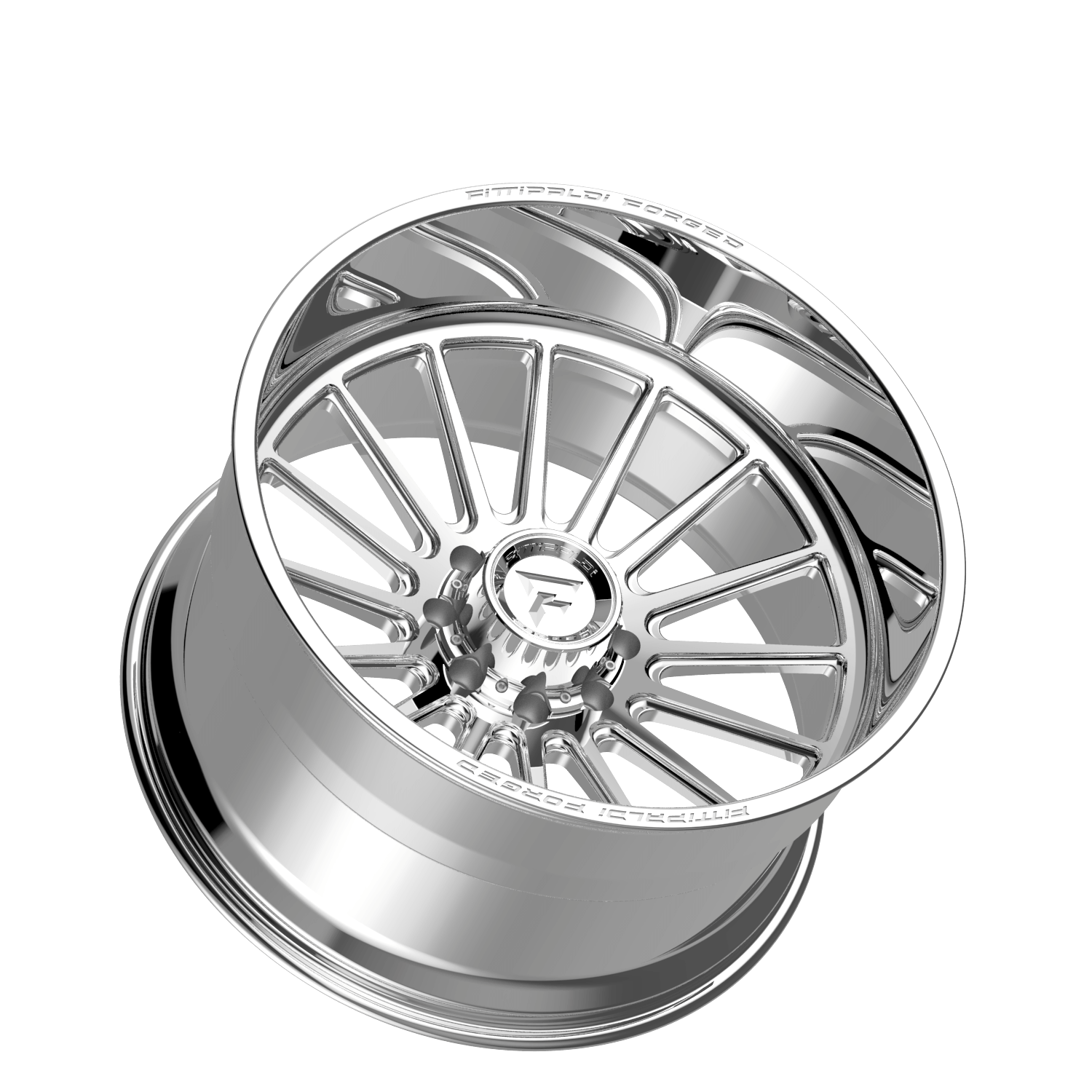

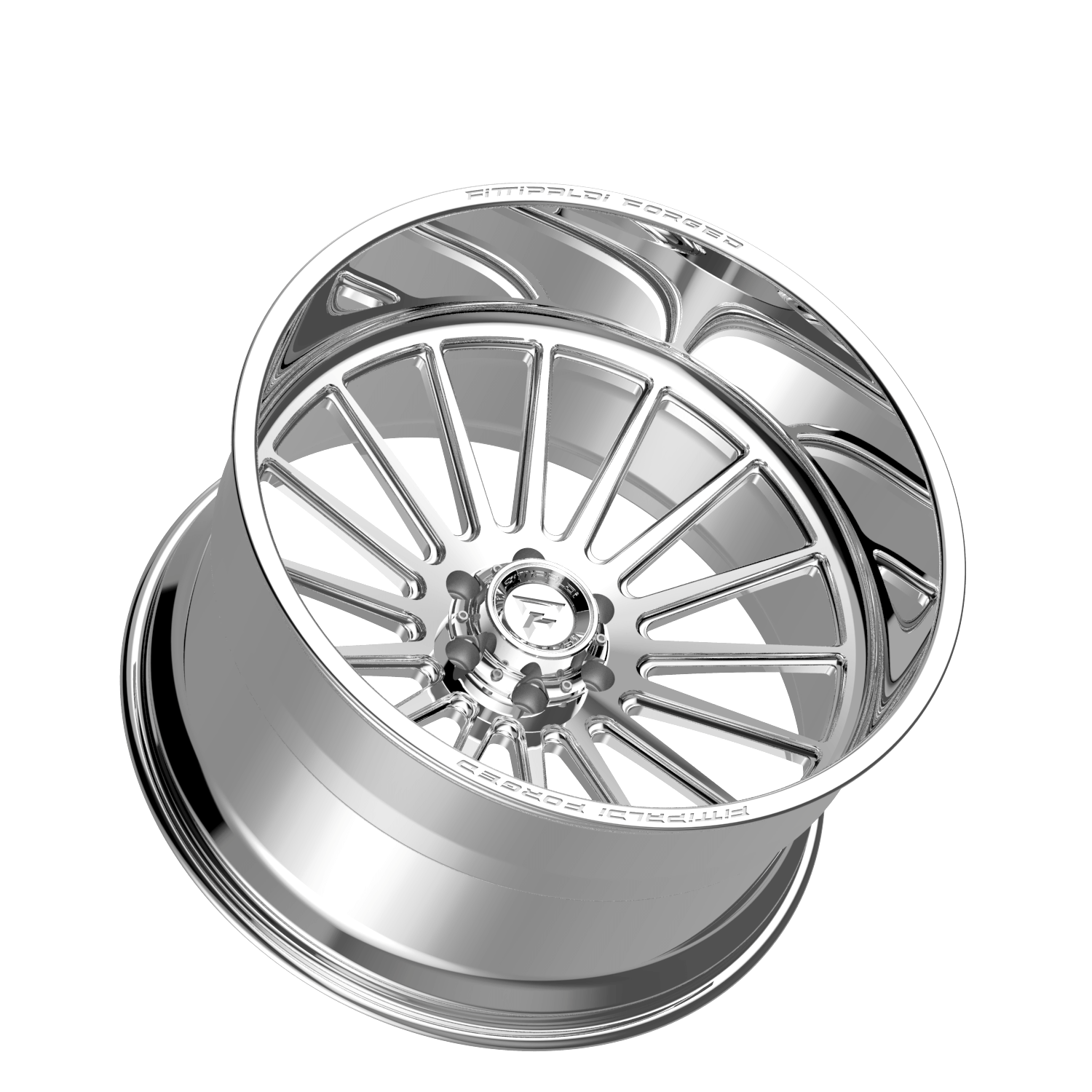

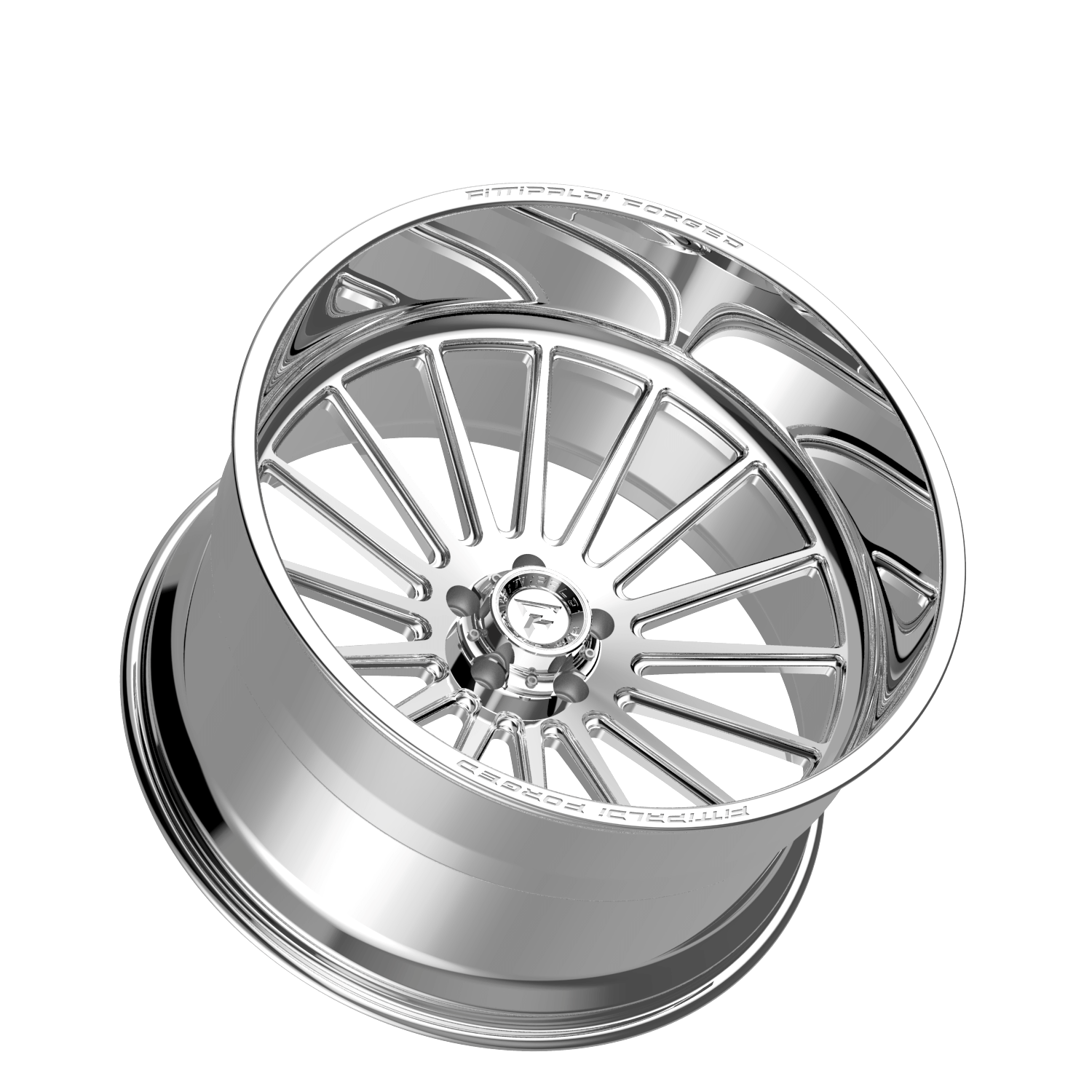

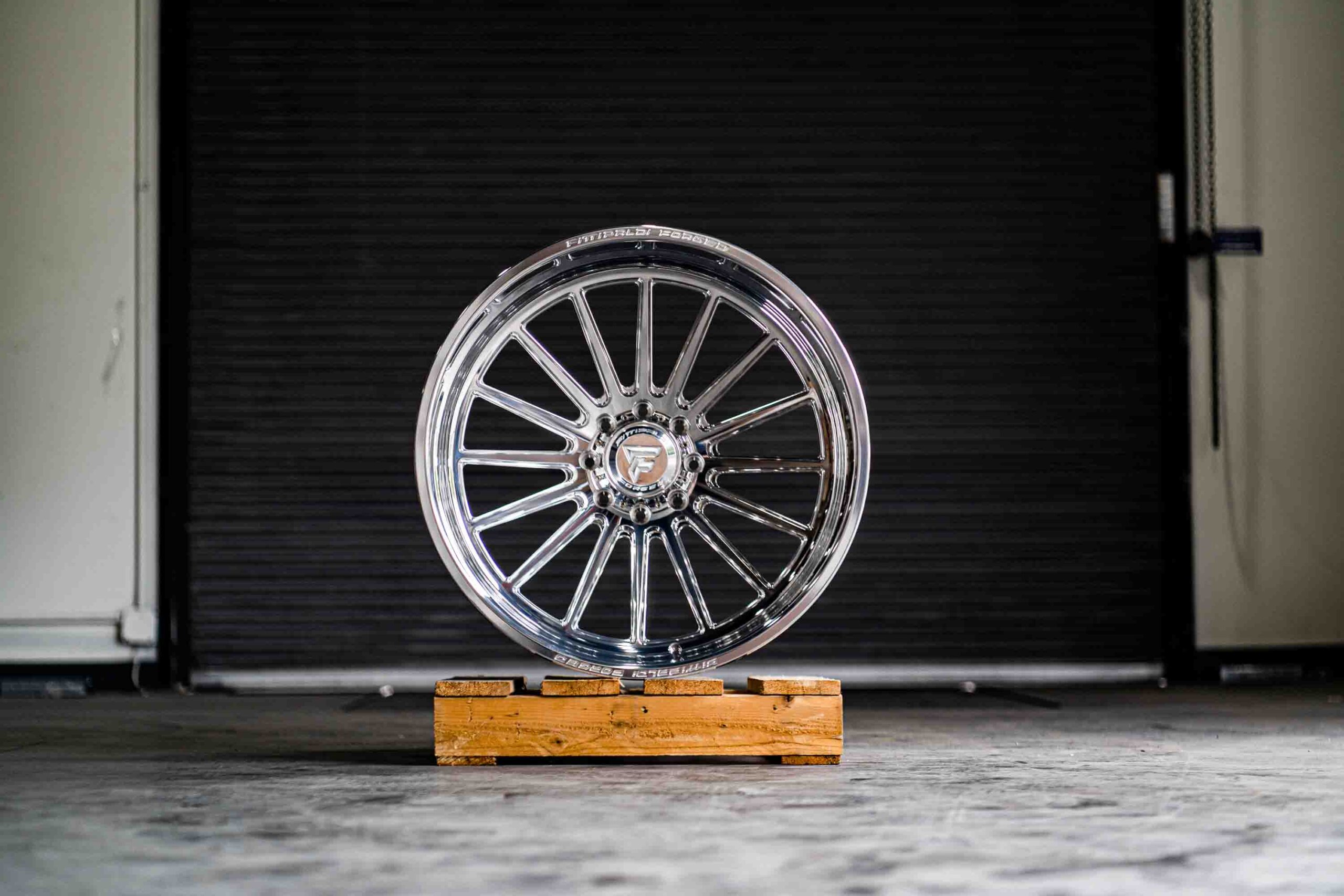

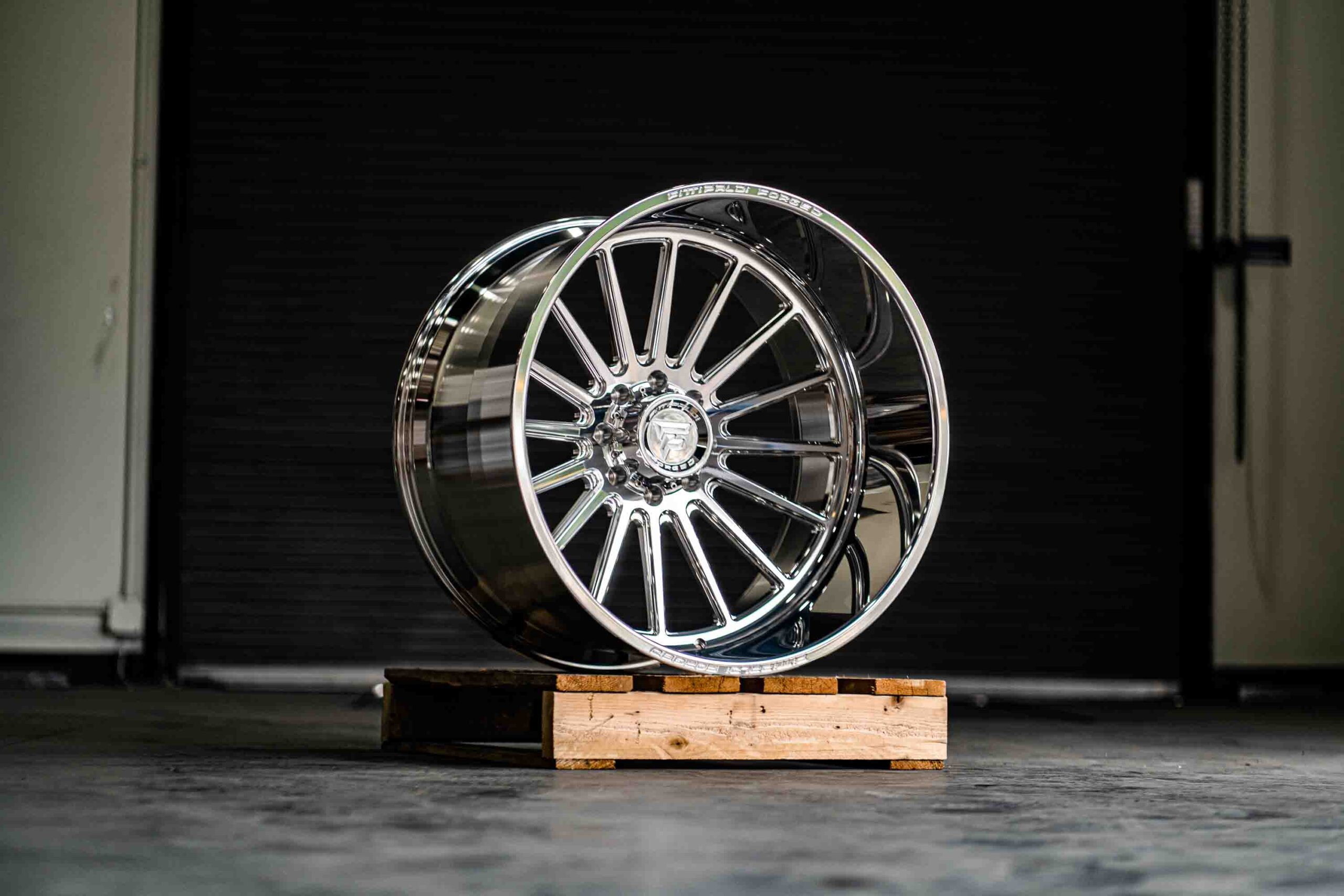

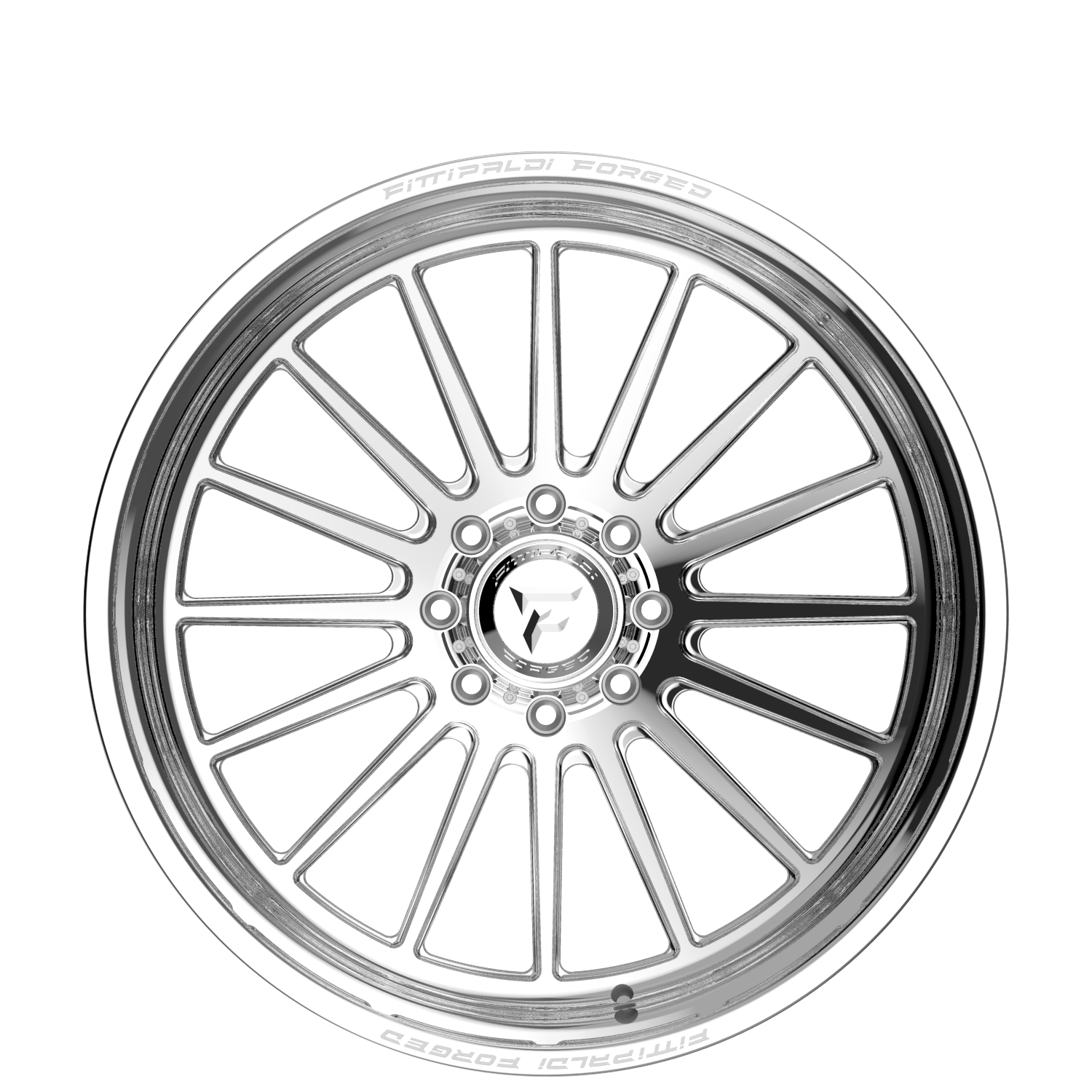

The FTF504 is a timeless multi-spoke wheel with the signature Fittipaldi Off Road twist. We took 16 classic gracefully tapered straight spokes and gave each one a full milled lightcatcher detail for added sophistication and maximum shimmer that will elevate any build. Each Fittipaldi Off Road Forged wheel begins with a solid forged monoblock of the finest Aerospace-grade 6061 aluminum. Every monoblock is shaped by enormous pressure for the lightest and strongest forging before it is precision heat treated to T6 spec, further increasing stiffness and strength. Only then, can we begin the precision CNC-milling process to meet Fittipaldi Off Road’s highest standards of quality and design.


KEY FEATURES

• One-piece forged monoblock construction
• Super strong 6061-T6 aerospace-grade aluminum ​alloy
• T6 heat treated for maximum strength​
• Classic straight multi spoke design with lightcatching details
• Deep lip with concave face profile
• Premium polished bolt-on forged aluminum centercap proudly showcasing Fittipaldi Off Road logo​ included with every wheel
• Precision details including “Fittipaldi Forged” proudly milled on outer lip
• Available in premium polished
• TPMS compatible
• Industry-leading 2500-3500 lb. minimum load ratings​
• Lifetime structural warranty

BOLT PATTERN

8 LUG
6 LUG
5 LUG
4 LUG (UTV)

Specifications

PART NUMBERWHEEL SIZEBOLT PATTERNOFFSET (MM)BACK SPACINGHUB BORE (MM)LOAD RATINGCAPMAP
FTF504-24104137N25P24X104X137 (UTV) -254.52110.11260CAP-FTF-4U$1,000.00
FTF504-24104156N25P24X104X156 (UTV)-254.521321260CAP-FTF-4U$1,000.00
FTF504-24126139N44P24X126X5.50-444.77106.22500CAP-FTF-6$1,100.00
FTF504-24128165N44P24X128X6.50-444.77125.23500CAP-FTF-8$1,100.00
FTF504-24145127N76P24X145X5.00-764.5171.52500CAP-FTF-5S$1,175.00
FTF504-24146135N76P24X146X135-764.5187.12500CAP-FTF-6$1,175.00
FTF504-24146139N76P24X146X5.50-764.51106.22500CAP-FTF-6$1,175.00
FTF504-24148165N76P24X148X6.50-764.51125.23500CAP-FTF-8$1,175.00
FTF504-24148170N76P24X148X170-764.51125.23500CAP-FTF-8$1,175.00
FTF504-26145127N76P26X145X5.00-764.5171.52500CAP-FTF-5S$1,600.00
FTF504-26146139N76P26X146X5.50-764.51106.22500CAP-FTF-6$1,600.00
FTF504-26148165N76P26X148X6.50-764.51125.23500CAP-FTF-8$1,600.00
FTF504-26148180N76P26X148X180-764.51124.33500CAP-FTF-8$1,600.00
FTF504-26168165N101P26X168X6.50-1014.52125.23500CAP-FTF-8$1,675.00
FTF504-26168170N101P26X168X170-1014.52125.23500CAP-FTF-8$1,675.00
FTF504-30168180N101P30x168x180-1014.52124.33500CAP-FTF-8$2,800.00
