Truck Forged

FTF507

POLISHED (P)

U.S. PATENT PENDING

Diameters:

24"/ 26"

STARTING FROM :$1,000.00

PER WHEEL
Additional Info

color: POLISHED (P)

OVERVIEW

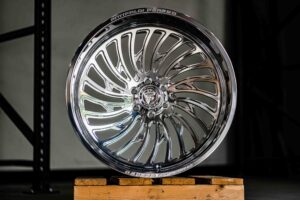

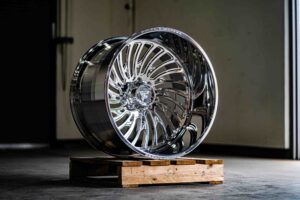

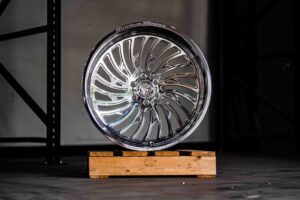

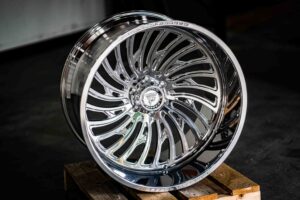

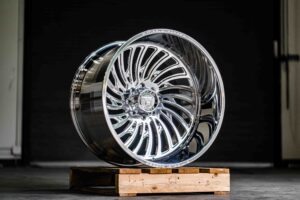

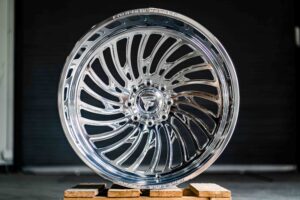

Built to break necks, the FTF507 is Fittpaldi Off Road’s spin on the curved multi spoke wheel. We took 24 elegant reverse tapered spokes on a concave profile and twisted them into a spiral. Then we integrated several layers of milled accents, offset steps and strengthening bridges to create one of the most unique and interesting forged wheels ever made. Each Fittipaldi Off Road Forged wheel begins with a solid forged monoblock of the finest Aerospace-grade 6061 aluminum. Every monoblock is shaped by enormous pressure for the lightest and strongest forging before it is precision heat treated to T6 spec, further increasing stiffness and strength. Only then, can we begin the precision CNC-milling process to meet Fittipaldi Off Road’s highest standards of quality and design.


KEY FEATURES

• One-piece forged monoblock construction
• Super strong 6061-T6 aerospace-grade aluminum ​alloy
• T6 heat treated for maximum strength​
• Swept 24 directional multi spoke design
• True directional left and right wheels
• Deep lip with concave face profile
• Premium polished bolt-on forged aluminum centercap proudly showcasing Fittipaldi Off Road logo​ included with every wheel
• Precision details including “Fittipaldi Forged” proudly milled on outer lip
• Available in premium polished
• TPMS compatible
• Industry-leading 2500-3500 lb. minimum load ratings​
• Lifetime structural warranty

BOLT PATTERN

8 LUG
6 LUG
5 LUG

Specifications

PART NUMBERWHEEL SIZEBOLT PATTERNOFFSET (MM)BACK SPACINGHUB BORE (MM)LOAD RATINGCAPMAP
FTF507-26168170N101P-R26X168X170-1014.52125.23500CAP-FTF-8$1,675.00
FTF507-26168170N101P-L26X168X170-1014.52125.23500CAP-FTF-8$1,675.00
FTF507-26168165N101P-R26X168X6.50-1014.52125.23500CAP-FTF-8$1,675.00
FTF507-26168165N101P-L26X168X6.50-1014.52125.23500CAP-FTF-8$1,675.00
FTF507-26146135N76P-R26X146X135-764.5187.12500CAP-FTF-6$1,600.00
FTF507-26146135N76P-L26X146X135-764.5187.12500CAP-FTF-6$1,600.00
FTF507-24148180N76P-R24X148X180-764.51124.33500CAP-FTF-8$1,175.00
FTF507-24148180N76P-L24X148X180-764.51124.33500CAP-FTF-8$1,175.00
FTF507-24148170N76P-R24X148X170-764.51125.23500CAP-FTF-8$1,175.00
FTF507-24148170N76P-L24X148X170-764.51125.23500CAP-FTF-8$1,175.00
FTF507-24148165N76P-R24X148X6.50-764.51125.23500CAP-FTF-8$1,175.00
FTF507-24148165N76P-L24X148X6.50-764.51125.23500CAP-FTF-8$1,175.00
FTF507-24146139N76P-R24X146X5.50-764.51106.22500CAP-FTF-6$1,175.00
FTF507-24146139N76P-L24X146X5.50-764.51106.22500CAP-FTF-6$1,175.00
FTF507-24146135N76P-R24X146X135-764.5187.12500CAP-FTF-6$1,175.00
FTF507-24146135N76P-L24X146X135-764.5187.12500CAP-FTF-6$1,175.00
FTF507-24145127N76P-R24X145X5.00-764.5171.52500CAP-FTF-5S$1,175.00
FTF507-24145127N76P-L24X145X5.00-764.5171.52500CAP-FTF-5S$1,175.00
FTF507-24128180N44P-R24x128X180-444.77124.33500CAP-FTF-8$1,100.00
FTF507-24128180N44P-L24x128X180-444.77124.33500CAP-FTF-8$1,100.00
FTF507-24126139N44P-R24X126X5.50-444.77106.22500CAP-FTF-6$1,100.00
FTF507-24126139N44P-L24X126X5.50-444.77106.22500CAP-FTF-6$1,100.00
FTF507-24104137N25P-L24x104x137-254.52110.11260CAP-FTF-4U$1,000.00
FTF507-24104137N25P-R24x104x137-254.52110.11260CAP-FTF-4U$1,000.00
FTF507-24104156N25P-L24x104x156-254.521321260CAP-FTF-4U$1,000.00
FTF507-24104156N25P-R24x104x156-254.521321260CAP-FTF-4U$1,000.00
