15"

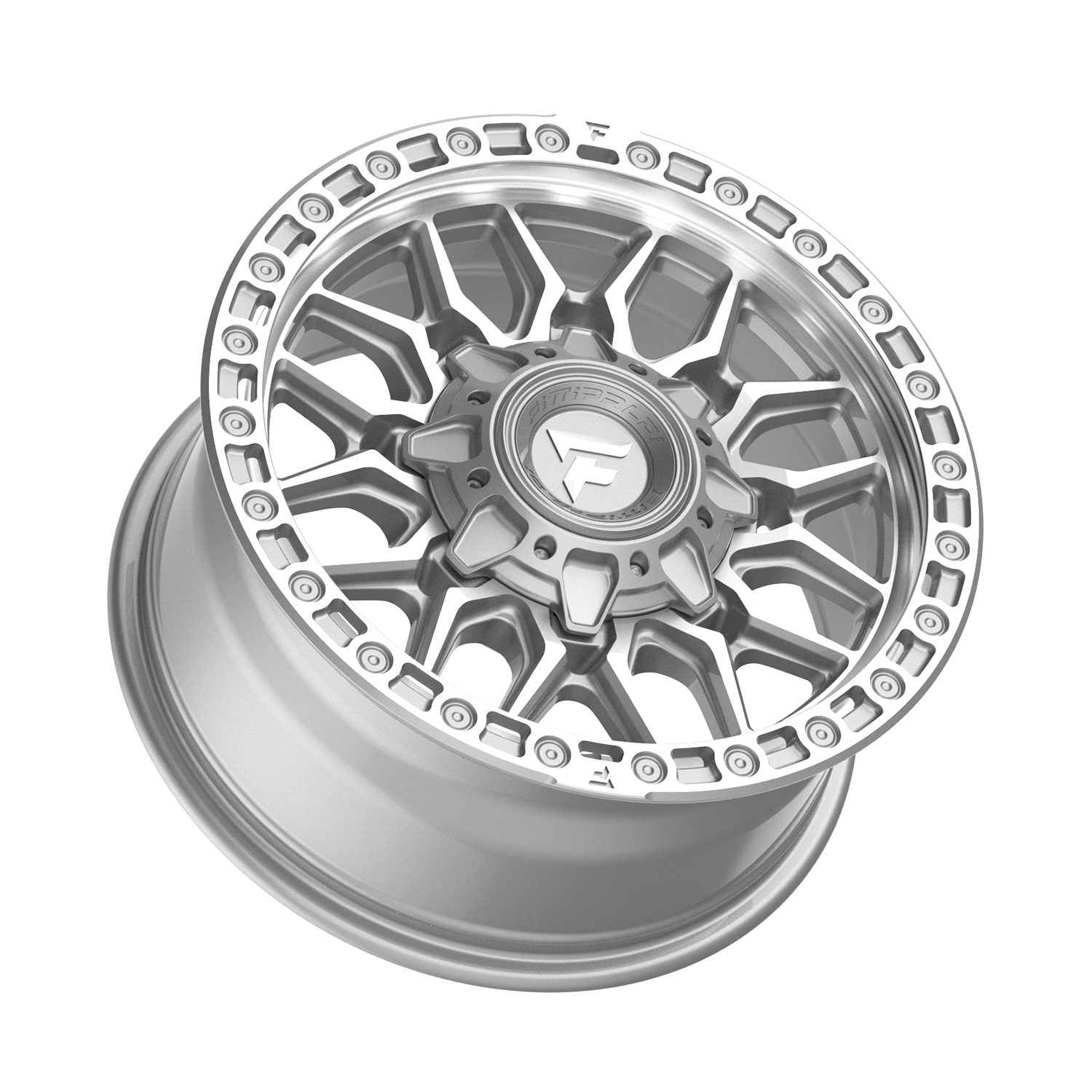

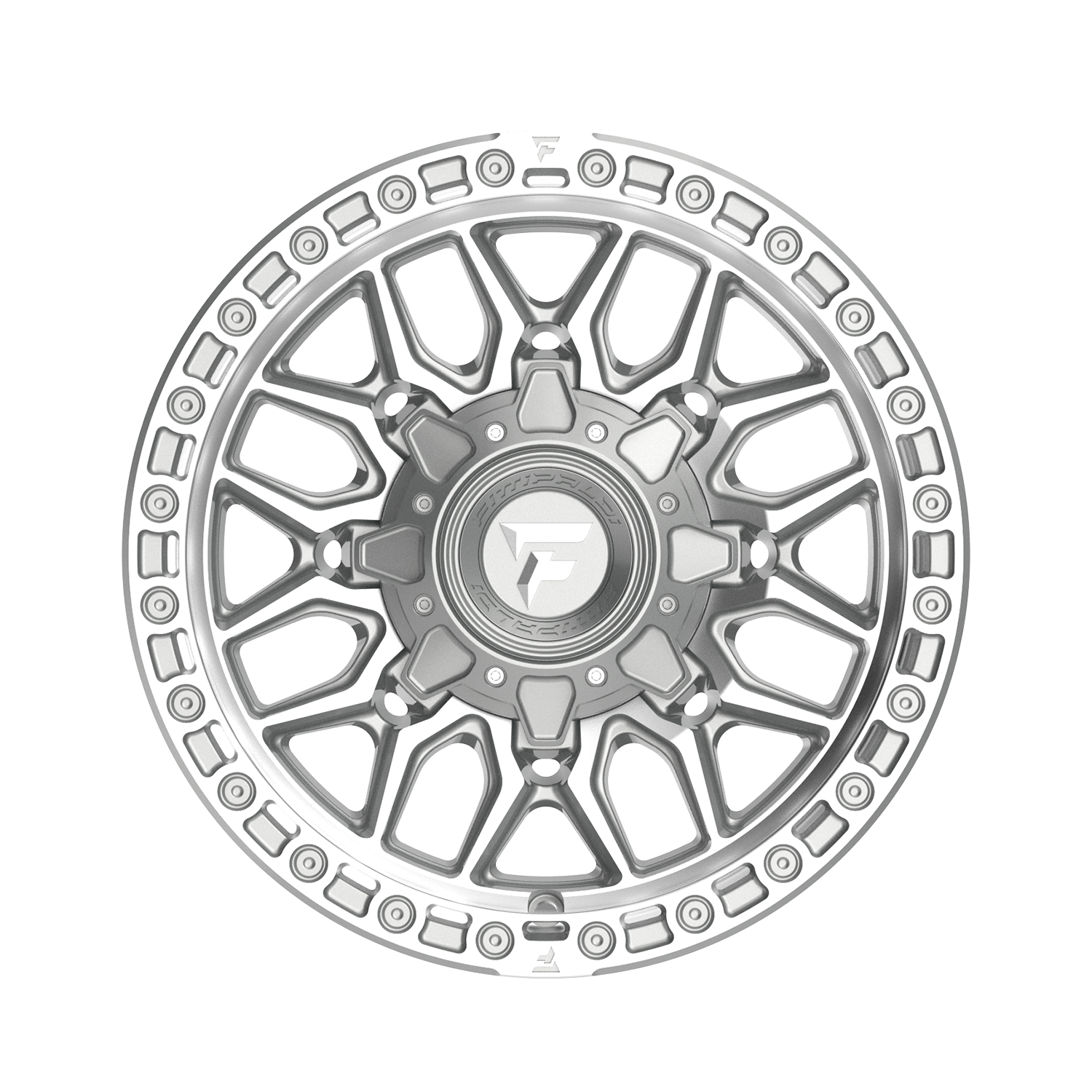

The FX200 brings rugged styling and dependable performance to the FX Series. Its aggressive six-mesh design is reinforced by a bold simulated beadlock ring. Engineered specifically for off-road applications, the FX200 is designed to handle harsh impacts, rough trails, and everything in between while maintaining its strength and reliability. Available in Gloss Black and Machined Silver Lip finishes.
• Exceptionally strong A356 aluminum alloy
• T6 heat treated for maximum strength
• Available in staggered fitments for optimized applications
• Rugged six-mesh design with a simulated beadlock ring
• Bolt-on full-cover center cap design with dual-lug compatibility
• TPMS compatible
• Industry-leading 1,600 lb load rating
• Lifetime structural warranty & 1 year finish warranty
| PART NUMBER | WHEEL SIZE | FINISH | BOLT PATTERN | BOLT PATTERN (METRIC) | OFFSET (MM) | BACK SPACING (IN) | HUB BORE (MM) | LOAD RATING (LBS) | STANDARD CAP | OPTIONAL FLOATING CAP | LIP DEPTH (IN) | WHEEL WEIGHT (LBS) | MSRP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FX200-157043756P25SB | 15X7 | Satin Black | 4x5.4/4x6.14 | 4x137/4x156 | 25 | 4.98 | 110.1 | 1600 | CAP-FX00-SB | 1.23 | 15.87 | $230.00 | |
| FX200-151043756Q00SB | 15X10 | Satin Black | 4x5.4/4x6.14 | 4x137/4x156 | 0 | 5.5 | 110.1 | 1600 | CAP-FX00-SB | 1.51 | 19.18 | $258.00 | |
| FX200-157043756P25MSL | 15X7 | Machined Silver Machined Lip | 4x5.4/4x6.14 | 4x137/4x156 | 25 | 4.98 | 110.1 | 1600 | CAP-FX00-MSL | 1.23 | 15.87 | $241.00 | |
| FX200-151043756Q00MSL | 15X10 | Machined Silver Machined Lip | 4x5.4/4x6.14 | 4x137/4x156 | 0 | 5.5 | 110.1 | 1600 | CAP-FX00-MSL | 1.51 | 19.18 | $269.00 |
CAST ALLOY WHEELS ENGINEERED SPECIFICALLY FOR UTV APPLICATIONS, DESIGNED TO WITHSTAND THE MOST DEMANDING OFF-ROAD CONDITIONS.
