15"

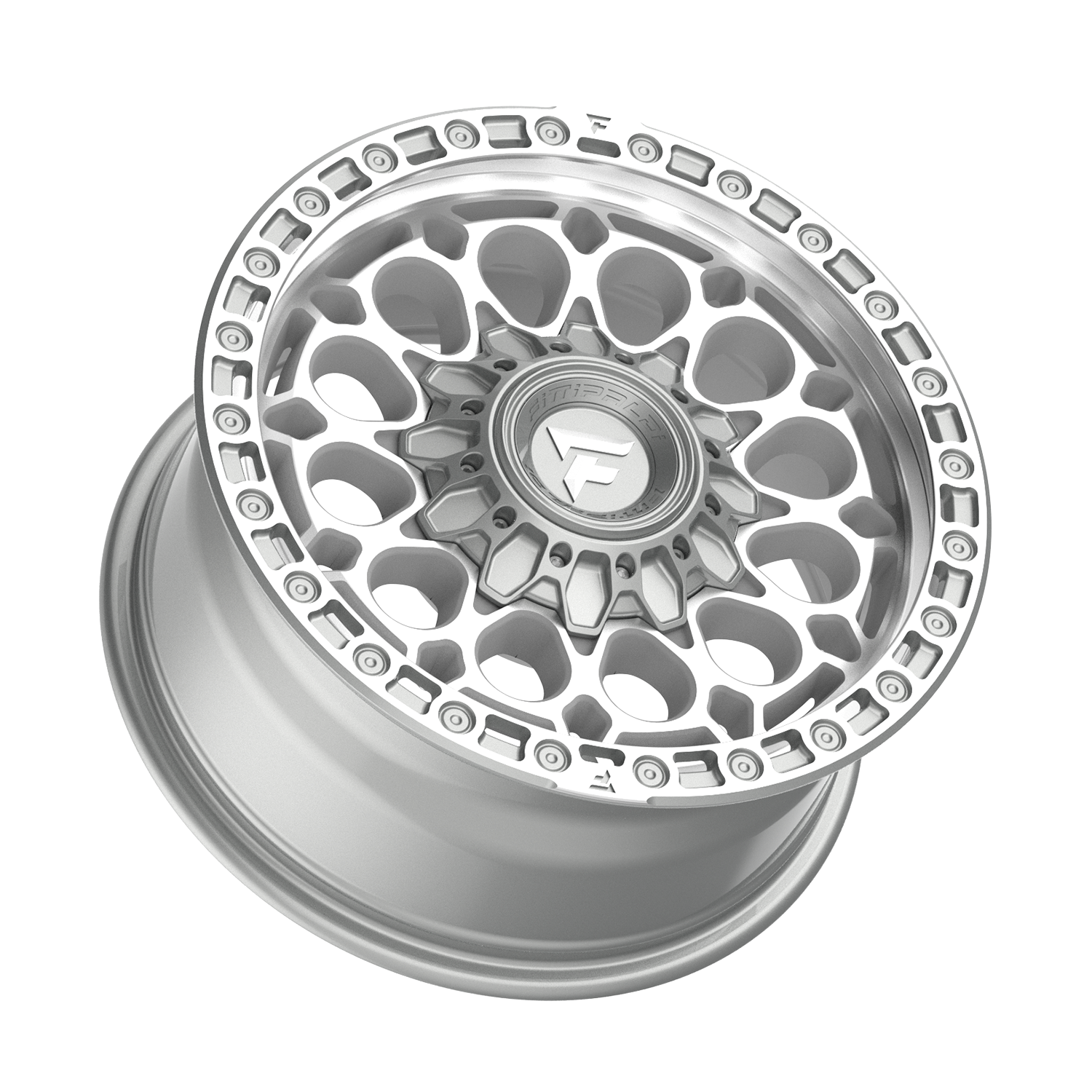

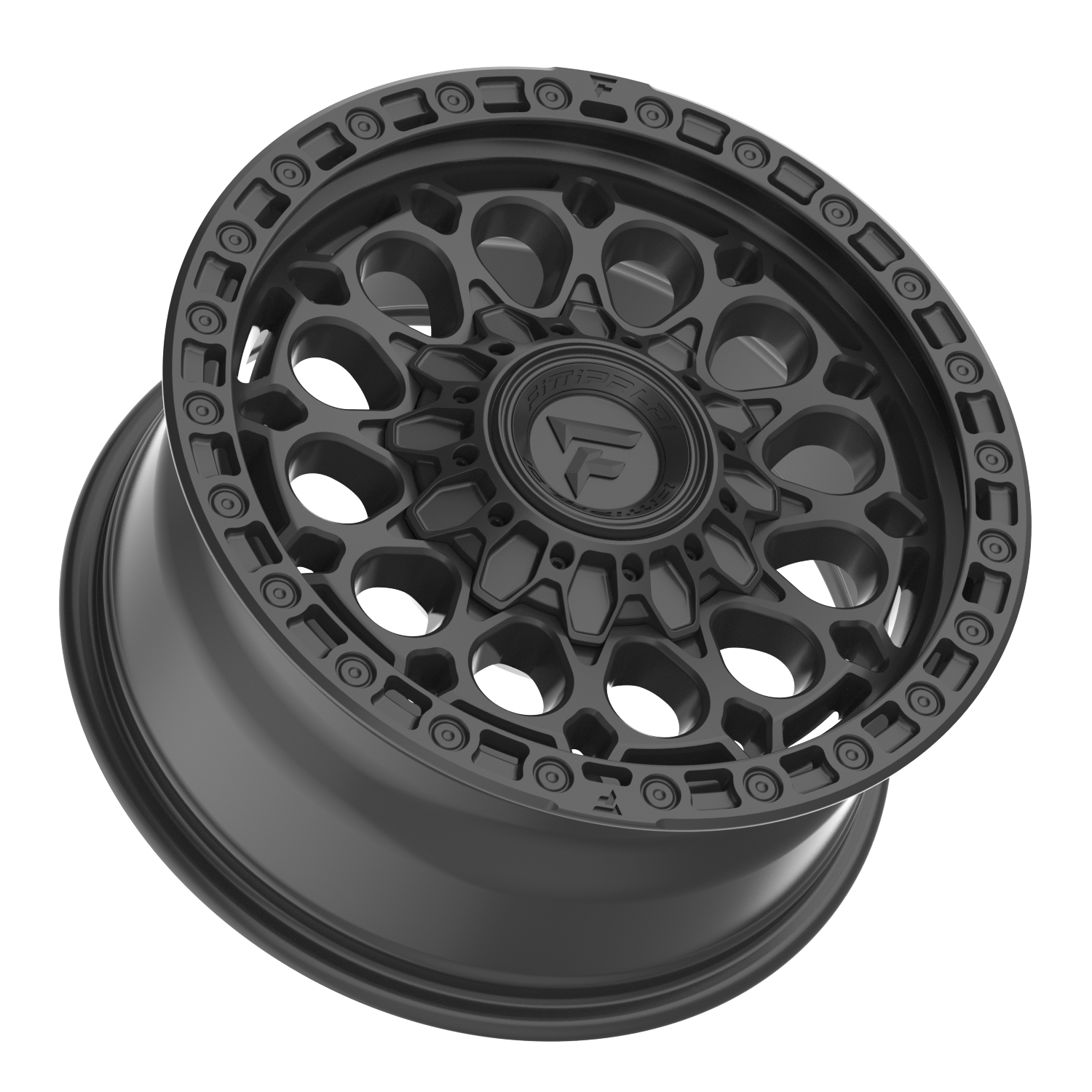

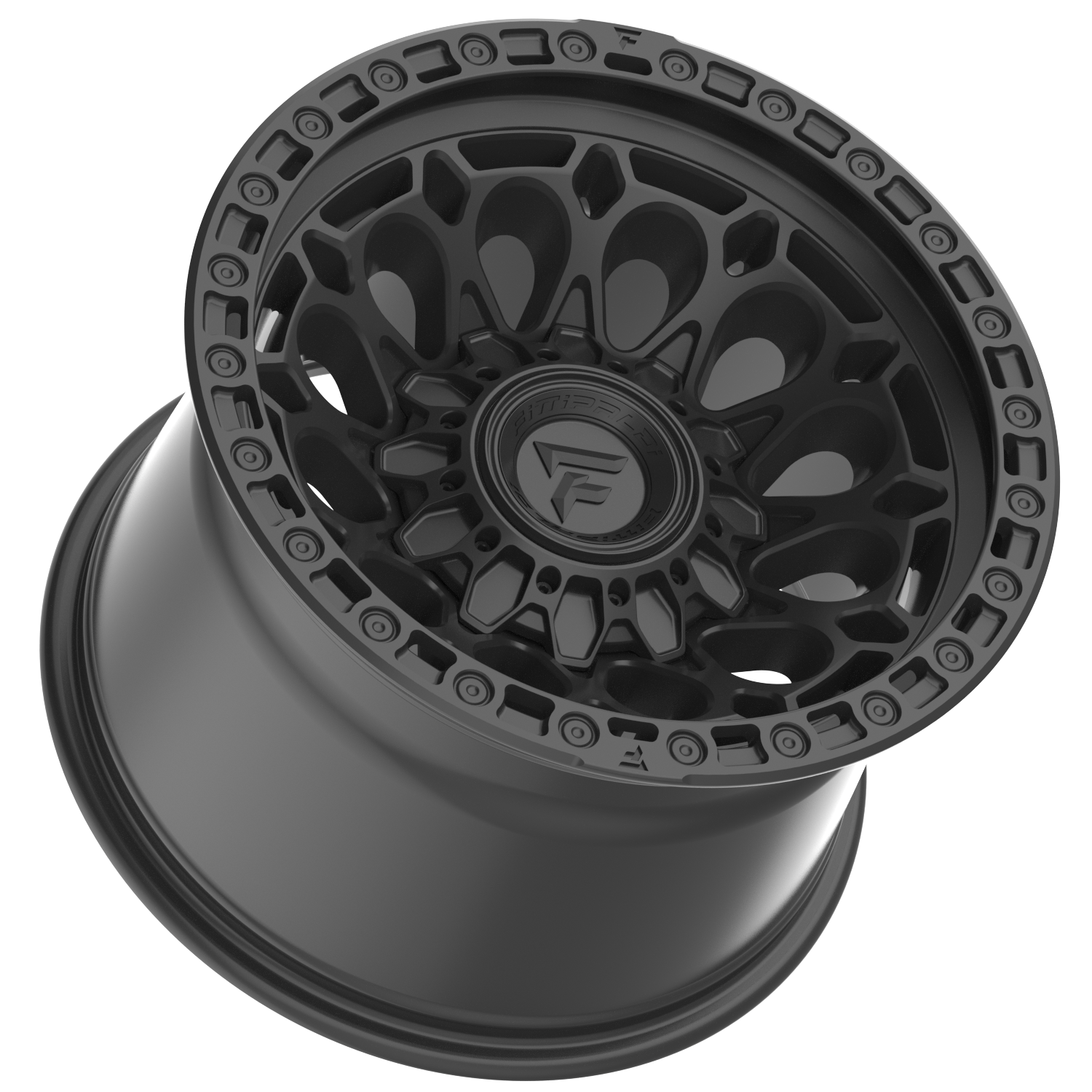

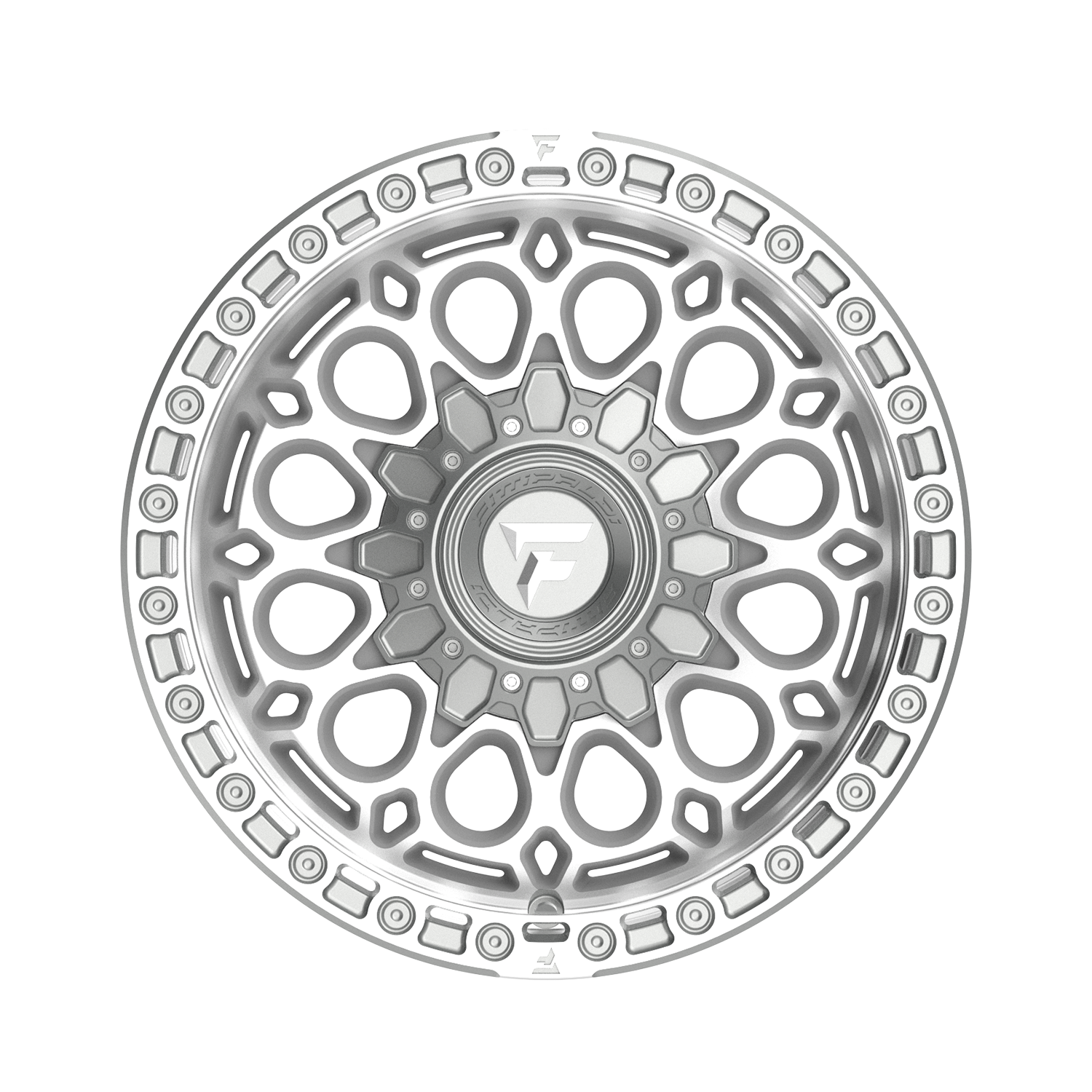

The FX201 brings a refined presence to the FX Series, combining off-road strength with our signature cathedral window-inspired design. Its structured spoke creates a bold sense of depth while maintaining the durability required for demanding UTV applications. Engineered from cast alloy to withstand harsh off-road conditions, the FX201 delivers dependable strength without compromising style. Available in Gloss Black and Machined Silver Lip finishes.
• Exceptionally strong A356 aluminum alloy
• T6 heat treated for maximum strength
• Available in staggered fitments for optimized applications
• Signature cathedral window design with a simulated beadlock ring
• Bolt-on full-cover center cap design with dual-lug compatibility
• TPMS compatible
• Industry-leading 1,600 lb load rating
• Lifetime structural warranty & 1 year finish warranty
| PART NUMBER | WHEEL SIZE | FINISH | BOLT PATTERN | BOLT PATTERN (METRIC) | OFFSET (MM) | BACK SPACING (IN) | HUB BORE (MM) | LOAD RATING (LBS) | STANDARD CAP | OPTIONAL FLOATING CAP | LIP DEPTH (IN) | WHEEL WEIGHT (LBS) | MSRP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FX201-157043756P25SB | 15X7 | Satin Black | 4x5.4/4x6.14 | 4x137/4x156 | 25 | 4.98 | 110.1 | 1600 | CAP-FX01-SB | 1.29 | 16.75 | $230.00 | |
| FX201-151043756Q00SB | 15X10 | Satin Black | 4x5.4/4x6.14 | 4x137/4x156 | 0 | 5.5 | 110.1 | 1600 | CAP-FX01-SB | 1.51 | 20.28 | $258.00 | |
| FX201-157043756P25MSL | 15X7 | Machined Silver Machined Lip | 4x5.4/4x6.14 | 4x137/4x156 | 25 | 4.98 | 110.1 | 1600 | CAP-FX01-MSL | 1.29 | 16.75 | $241.00 | |
| FX201-151043756Q00MSL | 15X10 | Machined Silver Machined Lip | 4x5.4/4x6.14 | 4x137/4x156 | 0 | 5.5 | 110.1 | 1600 | CAP-FX01-MSL | 1.51 | 20.28 | $269.00 |
CAST ALLOY WHEELS ENGINEERED SPECIFICALLY FOR UTV APPLICATIONS, DESIGNED TO WITHSTAND THE MOST DEMANDING OFF-ROAD CONDITIONS.
