17"
STARTING FROM :$530.00

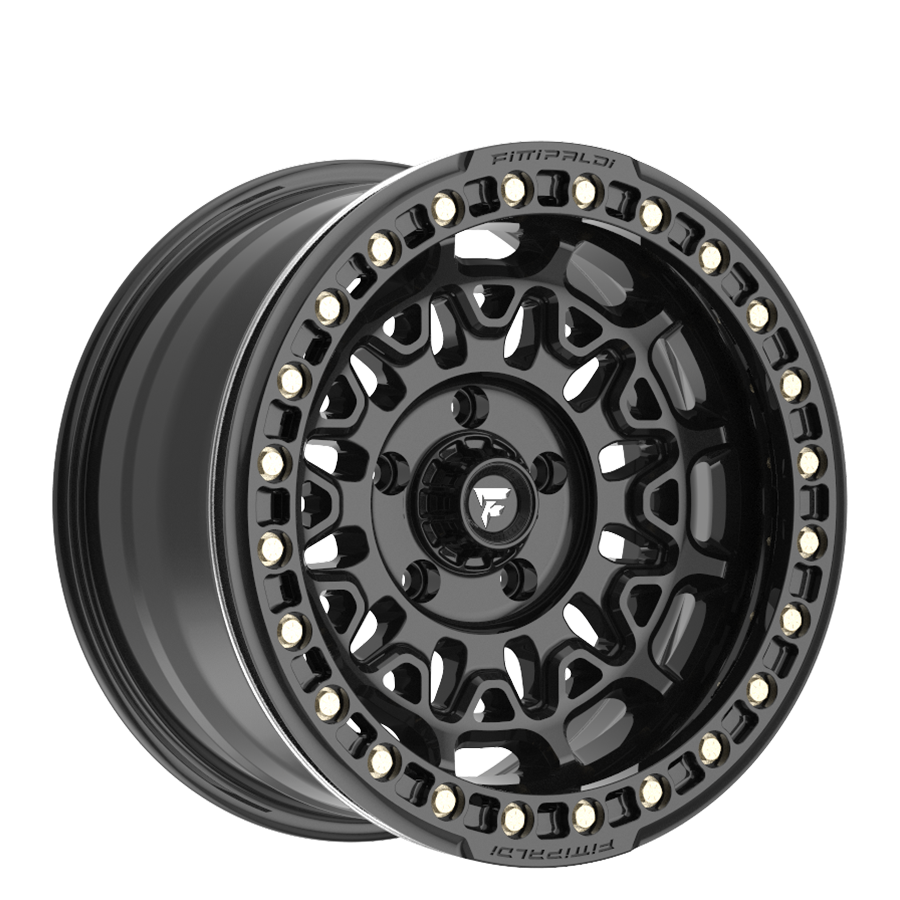

With a striking form that was born from function, the FB150’s unique hybrid A/Y spoke design features 3 layers of structural reinforcements that seamlessly transfer the heaviest of loads evenly around the entire wheel. There is no mistaking the FB150’s brutal yet sophisticated architectural and military inspired aesthetic. The unstoppable FB150 is available in satin black with a gloss black ring and gloss clear coated machined finish with a machined ring.
• Exceptionally strong A356 aluminum alloy
• T6 heat treated for maximum strength
• Ultra strong radial A/Y hybrid structural 12-spoke design

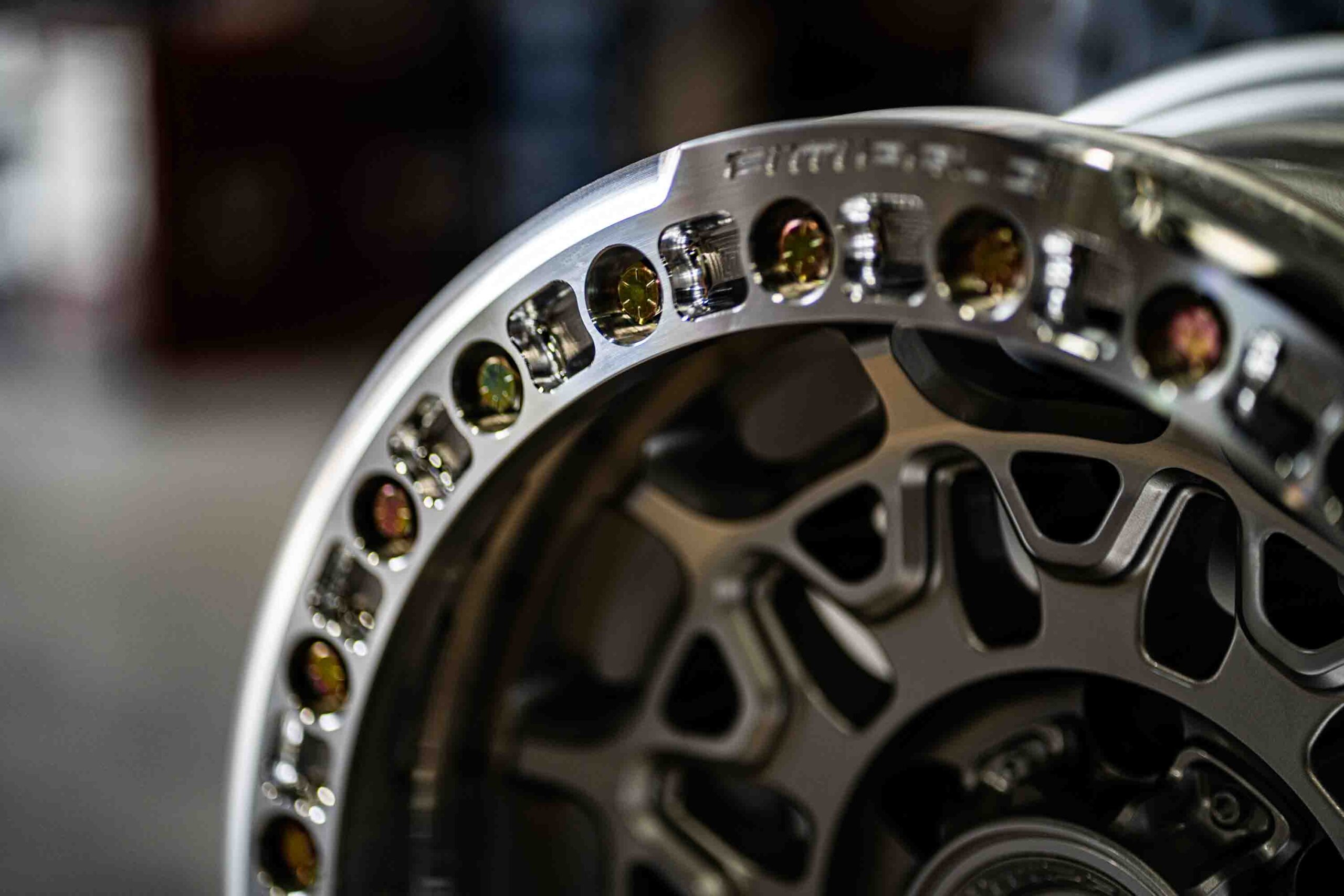

• Forged & heat treated 6061-T6 aluminum beadlock ring with lightweight milling and Fittipaldi logo
• Reinforced, variable thickness barrel for optimum strength to weight ratio

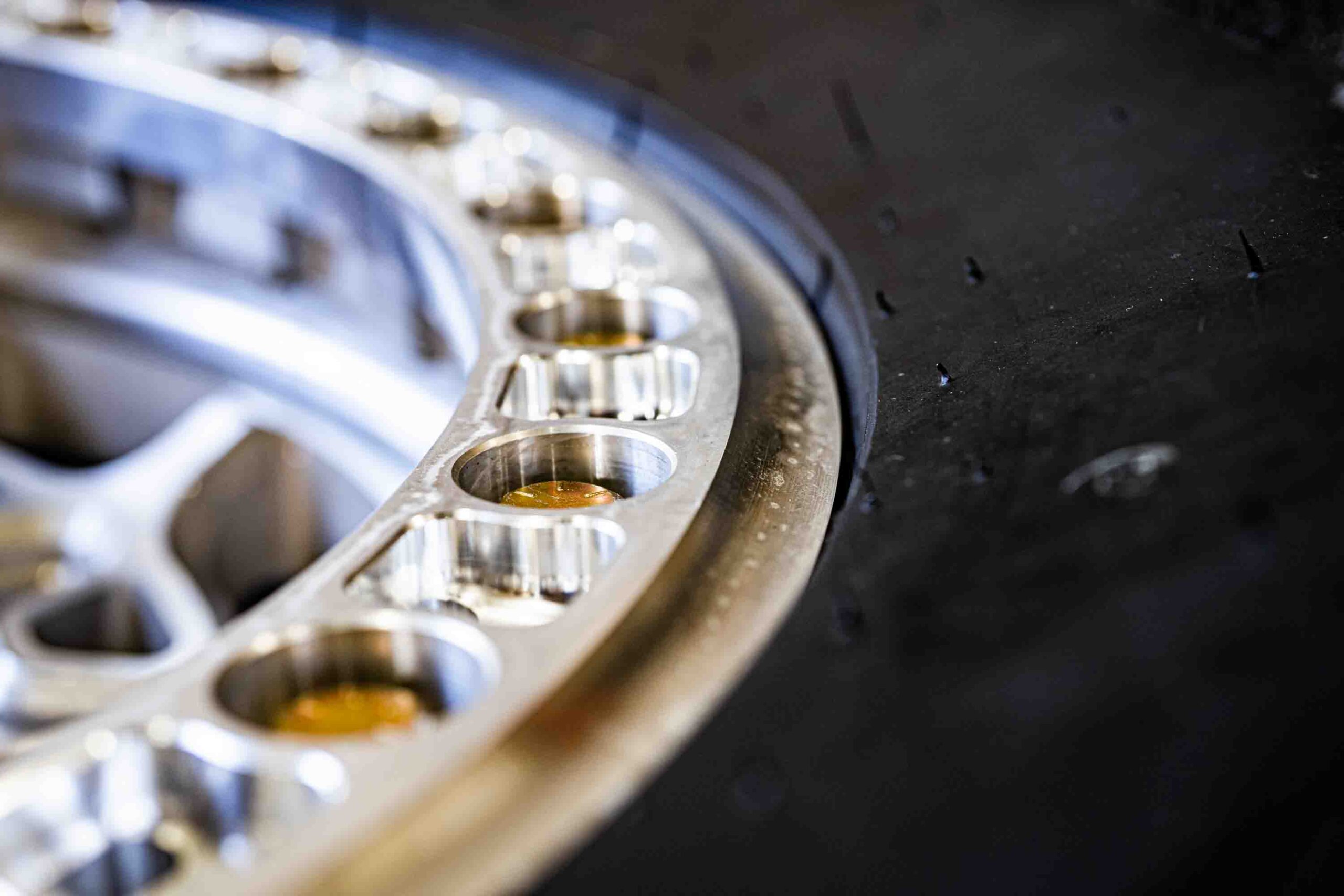

• Serrated beadlock mounting face for maximum weight reduction
• High performance 3/8″ grade 8 yellow zinc-plated beadlock hardware
• Heavy duty stainless steel threaded inserts for maximum durability and high torque cross-threading resistance
• Bolt-on cap with Fittipaldi logo
• Incredibly tough 3250 lb. load ratings
• TPMS compatible
PART NUMBER | WHEEL SIZE | BOLT PATTERN | OFFSET (MM) | BACK SPACING | HUB BORE (MM) | LOAD RATING | CAP | MAP |
---|---|---|---|---|---|---|---|---|
FB150-17905127N15B | 17X9 | 5X5.00 | -15 | 4.41 | 71.5 | 3250 | CAP-FOP-5-B | $530.00 |
FB150-17905127N15M | 17X9 | 5X5.00 | -15 | 4.41 | 71.5 | 3250 | CAP-FOP-5-SC | $550.00 |
FB150-17906139N15B | 17X9 | 6X5.50 | -15 | 4.41 | 106.2 | 3250 | CAP-FT-6-SBC | $530.00 |
FB150-17906139N15M | 17X9 | 6X5.50 | -15 | 4.41 | 106.2 | 3250 | CAP-FT-6-SC | $550.00 |
High performance Beadlock wheels with forged ring that are built for the most rigorous terrain.
