17"
STARTING FROM :$530.00

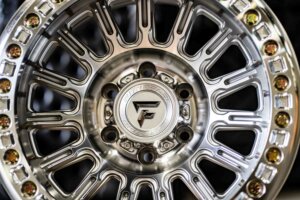

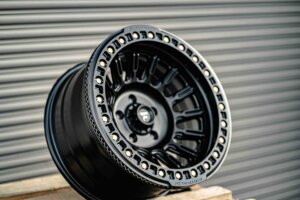

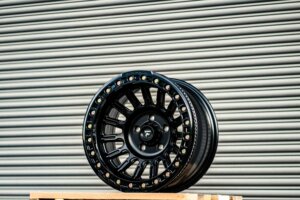

With 15 perfectly spaced tuning fork style spokes, the FB152 has no weak spots. Each spoke features intricately built layers of structural reinforcements that absorb back breaking impacts with ease. Extensive engineering coupled with our proprietary tempered A356 aluminum alloy, results in the rock crushing FB152 which is available in satin black with a gloss black ring, gloss clear coated machined finish with a machined ring and gloss red tint machined with a gloss black beadlock ring.
• Exceptionally strong A356 aluminum alloy
• T6 heat treated for maximum strength
• Sophisticated 15-spoke tuning fork design with a deep concave profile

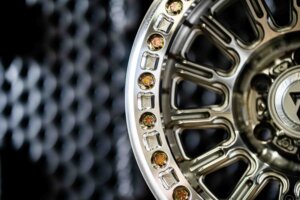

• Forged & heat treated 6061-T6 aluminum beadlock ring with lightweight milling and Fittipaldi logo
• Reinforced, variable thickness barrel for optimum strength to weight ratio
• Double helix milled and serrated beadlock mounting surfaces for maximum grip
• High performance 3/8″ grade 8 yellow zinc-plated beadlock hardware
• Heavy duty steel threaded inserts for maximum durability and cross-threading resistance
• Centercap with Fittipaldi logo
• Incredibly tough 3250 lb. to 3650 lb. load ratings
• TPMS compatible
• Requires 60° Conical Lug Nuts (Not Included)
| PART NUMBER | WHEEL SIZE | FINISH | BOLT PATTERN | BOLT PATTERN (METRIC) | OFFSET (MM) | BACK SPACING (IN) | HUB BORE (MM) | LOAD RATING (LBS) | STANDARD CAP | OPTIONAL FLOATING CAP | LIP DEPTH (IN) | WHEEL WEIGHT (LBS) | PRICE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FB152-17905127N38B | 17X9 | Satin Black | 5X5.00 | 5x127 | -38 | 3.5 | 71.5 | 3250 | CAP-FOP-5-B | N/A | - | 35.15 | $684 |
| FB152-17905127N38M | 17X9 | Machined Silver | 5X5.00 | 5x127 | -38 | 3.5 | 71.5 | 3250 | CAP-FOP-5-SC | N/A | - | 35.15 | $709 |
| FB152-17905127N38R | 17X9 | Metallic Red With Red Tint | 5X5.00 | 5x127 | -38 | 3.5 | 71.5 | 3250 | CAP-FOP-5-GBR | N/A | - | 35.15 | $560 |
| FB152-17906139N38B | 17X9 | Satin Black | 6X5.50 | 6x139.7 | -38 | 3.5 | 106.2 | 3250 | CAP-FT-6-SBC | N/A | - | 34.35 | $530 |
| FB152-17906139N38M | 17X9 | Machined Silver | 6X5.50 | 6x139.7 | -38 | 3.5 | 106.2 | 3250 | CAP-FT-6-SC | N/A | - | 34.35 | $550 |
| FB152-17906139N38R | 17X9 | Metallic Red With Red Tint | 6X5.50 | 6x139.7 | -38 | 3.5 | 106.2 | 3250 | CAP-FT-6-GBR | N/A | - | 34.35 | $560 |
| FB152-17908165N38B | 17X9 | Satin Black | 8X6.50 | 8x165.1 | -38 | 3.5 | 125.2 | 3650 | CAP-FT-8-SBC | N/A | - | 35 | $530 |
| FB152-17908165N38M | 17X9 | Machined Silver | 8X6.50 | 8x165.1 | -38 | 3.5 | 125.2 | 3650 | CAP-FT-8-SC | N/A | - | 35 | $709 |
| FB152-17908165N38R | 17X9 | Metallic Red With Red Tint | 8X6.50 | 8x165.1 | -38 | 3.5 | 125.2 | 3650 | CAP-FT-8-GBR | N/A | - | 35 | $560 |
High performance Beadlock wheels with forged ring that are built for the most rigorous terrain.
