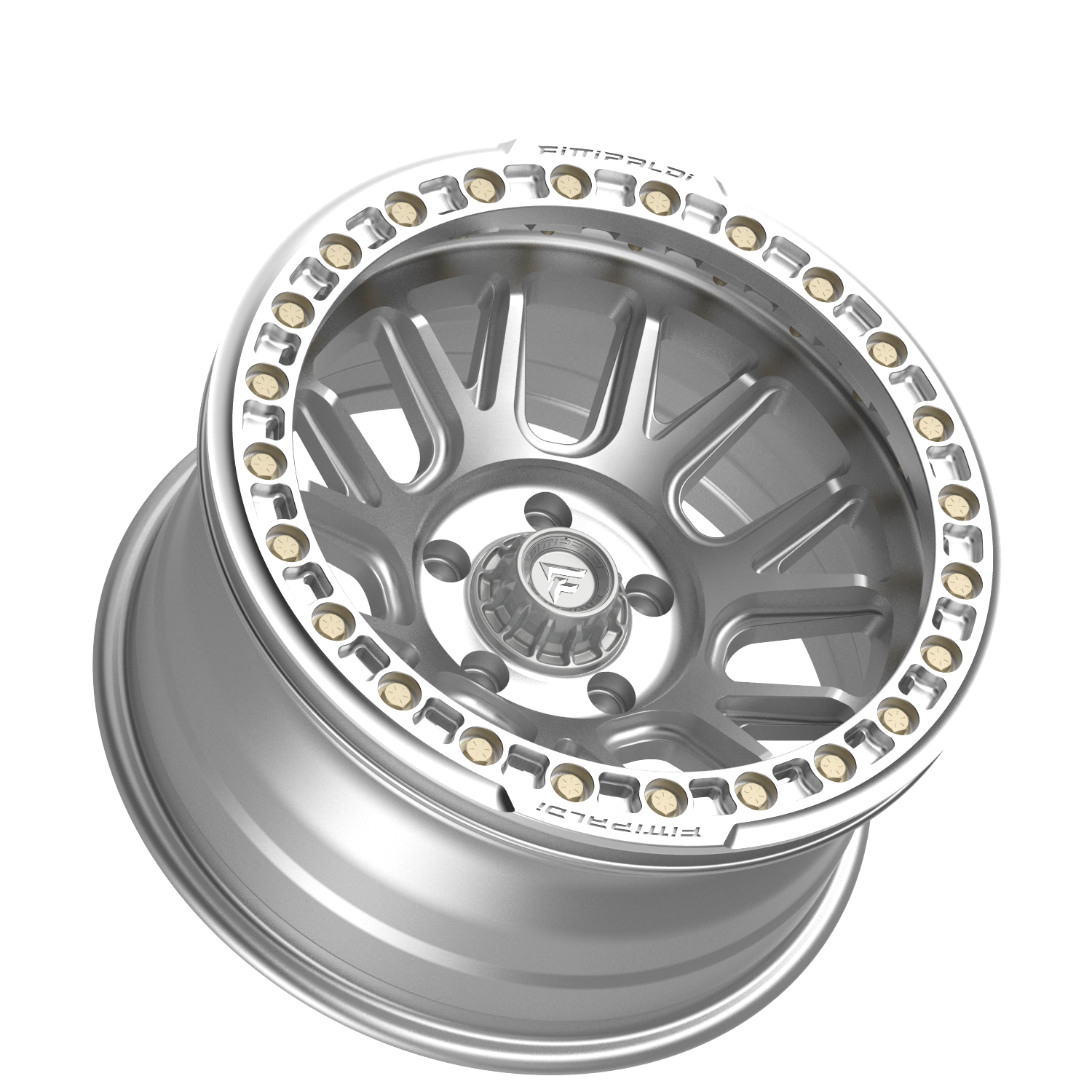

Beadlock Series

FB151

MACHINED (M) WITH MACHINED FORGED RING

U.S. PATENT PENDING

Diameters:

17"

STARTING FROM : $530.00

PER WHEEL
Call your nearest Dealer for more information

color: MACHINED (M) WITH MACHINED FORGED RING

OVERVIEW

The perfect blend of aggressive stance and enduring mesh design, the FB151 looks great on any rig. Whether hard parked at the mall or effortlessly smashing rock gardens, the FB151 will always make sure you have the most stylish rolling hardware. The show stopping FB151 is available in satin black with a gloss black ring, gloss clear-coated machined finish with a machined ring and gloss red tint machined with a gloss black beadlock ring.


KEY FEATURES

• Exceptionally strong A356 aluminum alloy
• T6 heat treated for maximum strength
• Timeless 7-mesh stepped spoke design with a deep concave profile
• Forged & heat treated 6061-T6 aluminum beadlock ring with lightweight milling and Fittipaldi logo
• Reinforced, variable thickness barrel for optimum strength to weight ratio
• Serrated beadlock mounting face for maximum weight reduction
• High performance 3/8″ grade 8 yellow zinc-plated beadlock hardware
• Heavy duty stainless steel threaded inserts for maximum durability and high torque cross-threading resistance
• Bolt-on cap with Fittipaldi logo
• Incredibly tough 3250 lb. load ratings
• TPMS compatible

BOLT PATTERN

6 LUG
5 LUG

Specifications

PART NUMBERWHEEL SIZEBOLT PATTERNOFFSET (MM)BACK SPACINGHUB BORE (MM)LOAD RATINGCAPMAP
FB151-17905127N38B17X95X5.00-383.571.53250CAP-FOP-5-B$530.00
FB151-17905127N38M17X95X5.00-383.571.53250CAP-FOP-5-SC$550.00
FB151-17905127N38R17X95X5.00-383.571.53250CAP-FOP-5-GBR$560.00
FB151-17906139N38B17X96X5.50-383.5106.23250CAP-FT-6-SBC$530.00
FB151-17906139N38M17X96X5.50-383.5106.23250CAP-FT-6-SC$550.00
FB151-17906139N38R17X96X5.50-383.5106.23250CAP-FT-6-GBR$560.00
